SDO HMI 2011-05-30 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.41 | 68.61 | 19.08 | 64.05 | -18.10 | 26.69 | -56.34 | 110.92 | 0.8490 | 620.5 | 187.0 | |
|
previous
or next observation for the same group /

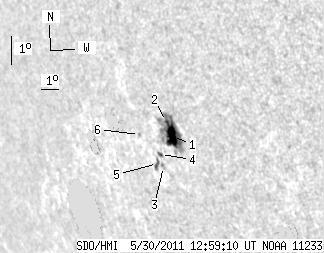

back to the solar disc SDO HMI 2011-05-30 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.63 | 57.69 | 13.56 | 53.54 | -18.01 | 26.90 | -56.13 | 110.86 | 0.8471 | 740.6 | 158.9 | |
| 0.72 | -1.00 | 0.67 | -1.00 | -17.53 | 26.79 | -56.25 | 110.28 | 0.8473 | 182.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.99 | -18.96 | 25.89 | -57.15 | 111.75 | 0.8574 | 661.0 | 609.4 | |
| 1.81 | 2.98 | 1.72 | 2.84 | -18.58 | 25.91 | -57.12 | 111.31 | 0.8565 | 480.9 | 388.2 | |
| 3.25 | 4.51 | 3.13 | 4.36 | -18.86 | 25.58 | -57.45 | 111.57 | 0.8598 | 396.8 | 296.1 | |
| 0.00 | 1.35 | 0.00 | 1.32 | -17.93 | 24.99 | -58.04 | 110.38 | 0.8632 | 186.0 | 116.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
