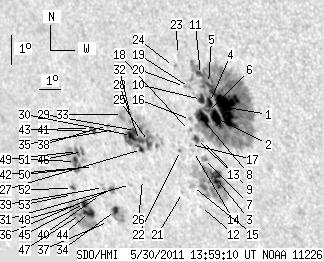

SDO HMI 2011-05-30 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.35 | 689.78 | 116.54 | 516.99 | -20.76 | 36.99 | -45.50 | 117.33 | 0.7518 | 270.1 | 136.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.95 | 386.76 | 32.87 | 277.21 | -19.82 | 39.45 | -43.03 | 117.09 | 0.7233 | 1122.5 | 404.6 | |
| 13.63 | -1.00 | 9.86 | -1.00 | -20.17 | 38.89 | -43.60 | 117.30 | 0.7308 | 805.4 | 999999 | |
| 13.36 | 75.38 | 9.90 | 56.21 | -22.11 | 38.16 | -44.32 | 119.49 | 0.7460 | 779.8 | 29.2 | |
| 5.33 | -1.00 | 3.85 | -1.00 | -19.65 | 38.75 | -43.73 | 116.58 | 0.7302 | 671.7 | 999999 | |
| 0.90 | -1.00 | 0.65 | -1.00 | -19.04 | 38.91 | -43.57 | 115.84 | 0.7262 | 437.7 | 999999 | |
| 1.35 | -1.00 | 0.98 | -1.00 | -19.97 | 38.55 | -43.93 | 116.91 | 0.7336 | 477.5 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.95 | -21.45 | 37.87 | -44.62 | 118.53 | 0.7464 | 705.0 | 528.1 | |
| 11.74 | -1.00 | 8.57 | -1.00 | -20.16 | 38.26 | -44.23 | 117.04 | 0.7374 | 586.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -20.87 | 38.00 | -44.49 | 117.84 | 0.7428 | 447.0 | 417.3 | |
| 5.33 | -1.00 | 3.87 | -1.00 | -19.55 | 38.43 | -44.06 | 116.32 | 0.7333 | 471.9 | 999999 | |
| 3.07 | -1.00 | 2.21 | -1.00 | -18.75 | 38.65 | -43.83 | 115.36 | 0.7280 | 499.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -23.02 | 37.04 | -45.45 | 120.15 | 0.7608 | -564.0 | -522.8 | |
| 3.25 | 4.42 | 2.41 | 3.28 | -20.83 | 37.74 | -44.75 | 117.69 | 0.7454 | 534.7 | 440.6 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -21.22 | 37.45 | -45.04 | 118.07 | 0.7498 | 469.0 | 304.4 | |
| 0.00 | 2.62 | 0.00 | 1.99 | -22.36 | 36.94 | -45.54 | 119.29 | 0.7592 | -460.0 | -398.9 | |
| 0.00 | 2.62 | 0.00 | 1.93 | -20.19 | 37.70 | -44.78 | 116.85 | 0.7433 | 416.0 | 296.7 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -20.99 | 37.40 | -45.09 | 117.76 | 0.7494 | 292.0 | 211.7 | |
| 0.00 | 2.26 | 0.00 | 1.67 | -20.54 | 37.52 | -44.96 | 117.23 | 0.7465 | 307.0 | 248.3 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -19.16 | 38.02 | -44.46 | 115.65 | 0.7363 | 454.0 | 373.5 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -19.13 | 37.81 | -44.68 | 115.52 | 0.7384 | 373.0 | 304.8 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -22.55 | 36.38 | -46.10 | 119.31 | 0.7654 | 168.0 | 169.7 | |
| 0.00 | 1.72 | 0.00 | 1.29 | -21.18 | 36.86 | -45.63 | 117.79 | 0.7556 | -690.0 | -621.2 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -18.10 | 37.83 | -44.65 | 114.20 | 0.7347 | 546.0 | 347.2 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -18.48 | 37.53 | -44.96 | 114.58 | 0.7392 | 370.0 | 415.0 | |
| 4.60 | 67.89 | 3.55 | 52.59 | -20.88 | 35.47 | -47.02 | 116.88 | 0.7686 | -717.9 | -492.7 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -22.11 | 34.65 | -47.84 | 118.10 | 0.7808 | -596.0 | -540.8 | |
| 1.53 | -25.00 | 1.20 | -25.00 | -21.13 | 35.02 | -47.46 | 117.03 | 0.7738 | 237.2 | 999999 | |
| 2.53 | -25.00 | 1.96 | -25.00 | -20.84 | 35.05 | -47.43 | 116.68 | 0.7726 | -822.9 | 999999 | |
| 0.90 | -25.00 | 0.70 | -25.00 | -20.52 | 34.99 | -47.49 | 116.26 | 0.7721 | -582.2 | 999999 | |
| 4.06 | -25.00 | 3.17 | -25.00 | -20.67 | 34.73 | -47.75 | 116.36 | 0.7752 | -694.7 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.52 | -22.26 | 33.98 | -48.50 | 118.05 | 0.7876 | -564.0 | -452.4 | |
| 0.00 | 3.07 | 0.00 | 2.38 | -20.00 | 34.96 | -47.52 | 115.60 | 0.7708 | -243.0 | -255.5 | |
| 0.00 | 6.59 | 0.00 | 5.14 | -19.99 | 34.57 | -47.91 | 115.47 | 0.7747 | 9.0 | 22.7 | |
| 4.60 | 17.79 | 3.80 | 14.64 | -23.11 | 32.81 | -49.67 | 118.65 | 0.8012 | -803.5 | -512.1 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -20.47 | 34.03 | -48.45 | 115.88 | 0.7815 | -376.0 | -354.9 | |
| 2.71 | 4.51 | 2.21 | 3.69 | -22.42 | 32.95 | -49.53 | 117.88 | 0.7978 | -769.2 | -513.7 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -23.46 | 32.27 | -50.22 | 118.89 | 0.8073 | -512.0 | -416.6 | |
| 0.36 | 1.44 | 0.29 | 1.15 | -20.34 | 33.70 | -48.79 | 115.60 | 0.7844 | -428.5 | -362.3 | |
| 0.00 | 2.80 | 0.00 | 2.31 | -22.35 | 32.58 | -49.91 | 117.67 | 0.8011 | -728.0 | -678.7 | |
| 0.00 | 1.17 | 0.00 | 0.97 | -22.57 | 32.31 | -50.18 | 117.85 | 0.8043 | -516.0 | -459.8 | |
| 1.17 | 3.79 | 0.95 | 3.07 | -20.53 | 32.97 | -49.52 | 115.59 | 0.7920 | 184.6 | 55.7 | |
| 0.00 | 1.08 | 0.00 | 0.89 | -21.66 | 32.40 | -50.09 | 116.78 | 0.8007 | -674.0 | -565.7 | |
| 0.99 | -41.00 | 0.80 | -41.00 | -20.43 | 32.81 | -49.67 | 115.42 | 0.7933 | -449.5 | 999999 | |
| 6.50 | 51.64 | 5.52 | 44.18 | -23.16 | 31.43 | -51.05 | 118.25 | 0.8139 | -697.7 | -14.9 | |
| 3.70 | -44.00 | 3.14 | -44.00 | -22.86 | 31.33 | -51.16 | 117.87 | 0.8140 | -711.9 | 999999 | |
| 2.44 | 29.34 | 2.01 | 24.50 | -21.17 | 32.07 | -50.42 | 116.08 | 0.8024 | -647.7 | -217.9 | |
| 1.17 | -44.00 | 1.01 | -44.00 | -23.22 | 30.92 | -51.56 | 118.16 | 0.8187 | -165.3 | 999999 | |
| 0.99 | -44.00 | 0.85 | -44.00 | -22.89 | 30.99 | -51.49 | 117.79 | 0.8171 | -276.2 | 999999 | |
| 3.07 | -46.00 | 2.55 | -46.00 | -21.16 | 31.81 | -50.67 | 116.00 | 0.8048 | -555.1 | 999999 | |
| 3.52 | -46.00 | 2.95 | -46.00 | -21.71 | 31.54 | -50.94 | 116.58 | 0.8088 | -558.2 | 999999 | |
| 3.61 | -46.00 | 3.02 | -46.00 | -21.49 | 31.55 | -50.93 | 116.31 | 0.8081 | -546.4 | 999999 | |
| 1.99 | 3.43 | 1.69 | 2.92 | -22.36 | 30.95 | -51.53 | 117.16 | 0.8160 | -421.0 | -362.0 | |
| 0.00 | 1.44 | 0.00 | 1.24 | -22.56 | 30.85 | -51.64 | 117.36 | 0.8175 | -360.0 | -222.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
