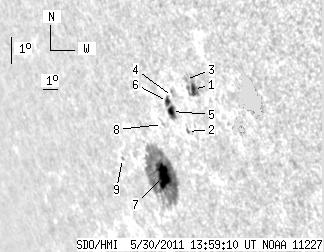

SDO HMI 2011-05-30 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.34 | 160.60 | 31.99 | 178.51 | -19.89 | 20.52 | -61.96 | 111.87 | 0.8960 | 204.1 | 58.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.24 | 15.53 | 4.22 | 15.42 | -17.60 | 23.70 | -58.79 | 109.87 | 0.8688 | -649.9 | -467.0 | |
| 0.00 | 1.26 | 0.00 | 1.31 | -18.93 | 22.57 | -59.91 | 111.17 | 0.8796 | -588.0 | -535.5 | |
| 0.00 | 1.63 | 0.00 | 1.63 | -17.27 | 23.37 | -59.11 | 109.44 | 0.8710 | 133.0 | 76.6 | |
| 0.00 | 0.63 | 0.00 | 0.66 | -17.80 | 22.25 | -60.23 | 109.85 | 0.8806 | -612.0 | -542.4 | |
| 4.24 | 12.55 | 4.46 | 13.20 | -18.28 | 21.91 | -60.57 | 110.32 | 0.8838 | -526.7 | -396.3 | |
| 2.71 | -5.00 | 2.85 | -5.00 | -17.96 | 21.84 | -60.64 | 109.95 | 0.8840 | -353.7 | 999999 | |
| 18.15 | 127.11 | 20.46 | 144.09 | -20.35 | 20.02 | -62.46 | 112.30 | 0.9004 | 715.8 | 138.3 | |
| 0.00 | 0.90 | 0.00 | 0.98 | -18.68 | 21.07 | -61.42 | 110.64 | 0.8907 | 422.0 | 307.7 | |
| 0.00 | 0.99 | 0.00 | 1.22 | -19.73 | 17.45 | -65.03 | 111.22 | 0.9171 | -351.0 | -322.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
