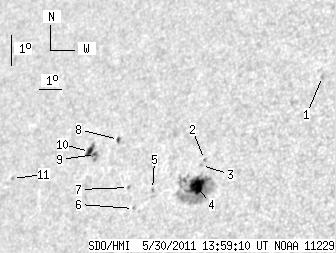

SDO HMI 2011-05-30 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.74 | 101.91 | 16.17 | 71.74 | 15.67 | 39.86 | -42.62 | 66.65 | 0.7119 | -307.6 | -206.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.38 | 18.85 | 45.07 | -37.41 | 59.80 | 0.6675 | 671.0 | 586.0 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 16.23 | 40.87 | -41.62 | 65.50 | 0.7031 | -698.0 | -551.5 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 16.04 | 40.79 | -41.69 | 65.79 | 0.7032 | -491.0 | -434.9 | |
| 16.07 | 78.09 | 11.13 | 54.09 | 15.41 | 40.74 | -41.75 | 66.67 | 0.7014 | -925.8 | -356.1 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 15.31 | 38.87 | -43.61 | 67.56 | 0.7221 | 580.0 | 522.8 | |
| 0.00 | 1.26 | 0.00 | 0.91 | 14.71 | 38.19 | -44.29 | 68.60 | 0.7277 | 543.0 | 424.4 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 15.38 | 37.79 | -44.69 | 67.86 | 0.7343 | 448.0 | 432.6 | |
| 1.53 | 2.44 | 1.14 | 1.82 | 16.92 | 36.89 | -45.59 | 66.21 | 0.7492 | 431.1 | 354.1 | |
| 1.44 | 12.01 | 1.09 | 9.10 | 16.45 | 35.98 | -46.50 | 67.13 | 0.7573 | 814.9 | 559.7 | |
| 3.70 | -9.00 | 2.81 | -9.00 | 16.55 | 35.67 | -46.81 | 67.12 | 0.7609 | 466.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.17 | 15.74 | 32.24 | -50.24 | 69.22 | 0.7936 | -567.0 | -486.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
