SDO HMI 2011-05-30 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.86 | 165.65 | 36.11 | 180.34 | -19.78 | 20.64 | -61.29 | 111.88 | 0.8910 | 131.5 | 77.9 | |
|
previous
or next observation for the same group /

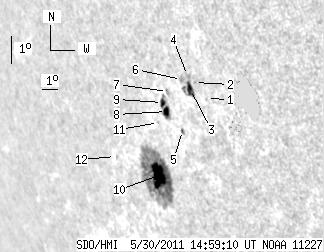

back to the solar disc SDO HMI 2011-05-30 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.26 | -17.90 | 24.57 | -57.36 | 110.48 | 0.8574 | -494.0 | -477.7 | |
| 0.00 | 0.99 | 0.00 | 0.96 | -17.38 | 24.11 | -57.82 | 109.80 | 0.8605 | -430.0 | -413.6 | |
| 5.96 | 12.46 | 5.82 | 12.21 | -17.60 | 23.76 | -58.17 | 109.99 | 0.8638 | -676.8 | -394.2 | |
| 0.00 | 2.62 | 0.00 | 2.55 | -17.16 | 23.80 | -58.13 | 109.49 | 0.8627 | -292.0 | -257.0 | |
| 0.54 | 2.17 | 0.55 | 2.21 | -18.90 | 22.55 | -59.38 | 111.24 | 0.8754 | -401.5 | -384.7 | |
| 0.00 | 2.98 | 0.00 | 2.94 | -17.28 | 23.38 | -58.56 | 109.55 | 0.8665 | 151.0 | 92.8 | |
| 0.00 | 2.35 | 0.00 | 2.39 | -17.65 | 22.31 | -59.63 | 109.78 | 0.8756 | -418.0 | -387.8 | |
| 5.15 | 14.17 | 5.33 | 14.67 | -18.28 | 21.88 | -60.05 | 110.42 | 0.8798 | -528.5 | -348.1 | |
| 2.80 | -8.00 | 2.90 | -8.00 | -17.99 | 21.79 | -60.14 | 110.08 | 0.8801 | -344.8 | 999999 | |
| 19.41 | 126.11 | 21.51 | 140.42 | -20.32 | 20.05 | -61.88 | 112.37 | 0.8962 | 713.4 | 156.8 | |
| 0.00 | 0.81 | 0.00 | 0.86 | -18.62 | 21.16 | -60.77 | 110.68 | 0.8858 | 213.0 | 232.9 | |
| 0.00 | 0.72 | 0.00 | 0.87 | -19.67 | 17.41 | -64.52 | 111.24 | 0.9137 | -430.0 | -452.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
