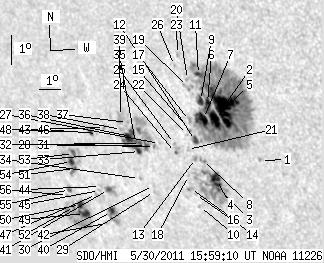

SDO HMI 2011-05-30 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.36 | 684.26 | 102.34 | 503.54 | -20.73 | 36.95 | -44.42 | 117.72 | 0.7407 | 236.2 | 161.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.76 | -21.52 | 40.37 | -41.01 | 120.24 | 0.7090 | 620.0 | 551.1 | |
| 48.20 | 379.85 | 33.91 | 267.63 | -19.76 | 39.34 | -42.03 | 117.44 | 0.7124 | 1129.2 | 436.6 | |
| 0.45 | 66.71 | 0.33 | 48.81 | -22.44 | 38.25 | -43.13 | 120.44 | 0.7351 | 729.4 | 147.7 | |
| 8.03 | -3.00 | 5.84 | -3.00 | -22.12 | 38.20 | -43.18 | 120.00 | 0.7343 | 885.4 | 999999 | |
| 12.91 | -2.00 | 9.18 | -2.00 | -20.17 | 38.81 | -42.57 | 117.76 | 0.7198 | 843.9 | 999999 | |
| 2.89 | -2.00 | 2.05 | -2.00 | -19.62 | 38.69 | -42.69 | 116.98 | 0.7190 | 698.8 | 999999 | |
| 7.49 | -2.00 | 5.37 | -2.00 | -20.14 | 38.34 | -43.04 | 117.50 | 0.7248 | 696.2 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.91 | -21.49 | 37.80 | -43.58 | 119.03 | 0.7358 | 542.0 | 533.6 | |
| 4.69 | -2.00 | 3.35 | -2.00 | -19.56 | 38.40 | -42.98 | 116.77 | 0.7218 | 502.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.87 | -22.99 | 37.07 | -44.31 | 120.61 | 0.7494 | -693.0 | -522.4 | |
| 2.98 | -2.00 | 2.11 | -2.00 | -18.72 | 38.58 | -42.80 | 115.74 | 0.7166 | 501.8 | 999999 | |
| 3.97 | 4.42 | 2.89 | 3.21 | -20.84 | 37.73 | -43.65 | 118.16 | 0.7340 | 513.3 | 367.2 | |
| 0.00 | 2.53 | 0.00 | 1.85 | -21.42 | 37.51 | -43.87 | 118.82 | 0.7386 | 418.0 | 247.1 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -22.60 | 37.05 | -44.33 | 120.10 | 0.7480 | -513.0 | -432.5 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -20.52 | 37.62 | -43.76 | 117.70 | 0.7338 | 448.0 | 386.5 | |
| 0.00 | 2.80 | 0.00 | 2.08 | -22.40 | 36.90 | -44.48 | 119.79 | 0.7487 | -383.0 | -398.8 | |
| 0.00 | 2.35 | 0.00 | 1.70 | -20.19 | 37.69 | -43.69 | 117.31 | 0.7319 | 387.0 | 248.9 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -21.97 | 36.98 | -44.40 | 119.29 | 0.7462 | -221.0 | -233.6 | |
| 0.00 | 4.87 | 0.00 | 3.49 | -19.10 | 37.97 | -43.40 | 116.00 | 0.7247 | 371.0 | 319.2 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -18.88 | 38.05 | -43.33 | 115.73 | 0.7231 | -198.0 | -110.5 | |
| 0.00 | 1.35 | 0.00 | 0.99 | -21.13 | 37.26 | -44.12 | 118.33 | 0.7400 | 179.0 | 199.5 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -20.64 | 37.44 | -43.94 | 117.78 | 0.7363 | 268.0 | 204.0 | |
| 0.00 | 1.81 | 0.00 | 1.29 | -18.08 | 37.86 | -43.52 | 114.60 | 0.7222 | 261.0 | 313.8 | |
| 0.99 | 3.70 | 0.74 | 2.74 | -21.22 | 36.67 | -44.70 | 118.21 | 0.7464 | -718.3 | -502.8 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -20.93 | 36.74 | -44.64 | 117.86 | 0.7446 | -764.0 | -697.7 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -18.43 | 37.62 | -43.76 | 114.96 | 0.7261 | 436.0 | 363.5 | |
| 0.00 | 0.90 | 0.00 | 0.68 | -20.92 | 36.05 | -45.33 | 117.58 | 0.7517 | -667.0 | -507.4 | |
| 0.00 | 1.62 | 0.00 | 1.22 | -21.02 | 35.78 | -45.60 | 117.59 | 0.7548 | -706.0 | -637.7 | |
| 0.00 | 1.17 | 0.00 | 0.90 | -22.48 | 35.17 | -46.20 | 119.18 | 0.7662 | -674.0 | -599.8 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -22.28 | 35.21 | -46.17 | 118.95 | 0.7651 | -716.0 | -575.1 | |
| 3.43 | 61.29 | 2.60 | 46.59 | -20.98 | 35.42 | -45.96 | 117.41 | 0.7583 | -783.2 | -466.2 | |
| 1.17 | -31.00 | 0.89 | -31.00 | -20.91 | 35.16 | -46.22 | 117.22 | 0.7607 | -799.8 | 999999 | |
| 2.17 | -31.00 | 1.65 | -31.00 | -21.17 | 35.01 | -46.37 | 117.49 | 0.7631 | 275.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -22.05 | 34.64 | -46.74 | 118.44 | 0.7698 | -613.0 | -536.7 | |
| 0.54 | -31.00 | 0.41 | -31.00 | -20.88 | 34.94 | -46.44 | 117.10 | 0.7628 | -850.0 | 999999 | |
| 8.49 | -31.00 | 6.49 | -31.00 | -20.68 | 34.78 | -46.60 | 116.79 | 0.7637 | -720.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -20.23 | 34.82 | -46.56 | 116.24 | 0.7618 | -596.0 | -489.7 | |
| 0.00 | 2.44 | 0.00 | 1.87 | -20.45 | 34.45 | -46.93 | 116.38 | 0.7663 | 140.0 | 101.1 | |
| 0.00 | 10.11 | 0.00 | 7.72 | -20.03 | 34.57 | -46.81 | 115.90 | 0.7638 | 49.0 | 3.0 | |
| 3.70 | 13.36 | 2.98 | 10.77 | -23.11 | 32.78 | -48.60 | 119.04 | 0.7914 | -901.7 | -549.8 | |
| 3.16 | 8.94 | 2.53 | 7.13 | -22.39 | 32.97 | -48.41 | 118.24 | 0.7871 | -753.3 | -496.6 | |
| 0.00 | 1.35 | 0.00 | 1.10 | -23.51 | 32.33 | -49.05 | 119.35 | 0.7968 | -504.0 | -442.5 | |
| 0.00 | 1.99 | 0.00 | 1.55 | -20.38 | 33.66 | -47.72 | 116.01 | 0.7740 | -464.0 | -309.4 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -22.29 | 32.62 | -48.76 | 117.99 | 0.7902 | -762.0 | -663.8 | |
| 0.00 | 0.99 | 0.00 | 0.80 | -22.42 | 32.51 | -48.87 | 118.11 | 0.7916 | -606.0 | -570.0 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -20.57 | 33.24 | -48.14 | 116.11 | 0.7787 | 137.0 | 107.7 | |
| 0.00 | 1.62 | 0.00 | 1.32 | -22.55 | 32.30 | -49.08 | 118.19 | 0.7940 | -511.0 | -418.9 | |
| 1.53 | 3.79 | 1.21 | 3.00 | -20.54 | 32.96 | -48.42 | 115.97 | 0.7814 | 191.5 | -111.8 | |
| 6.05 | 54.79 | 5.02 | 45.79 | -23.17 | 31.38 | -50.00 | 118.61 | 0.8045 | -697.1 | -47.8 | |
| 4.06 | -49.00 | 3.37 | -49.00 | -22.87 | 31.32 | -50.06 | 118.24 | 0.8041 | -737.2 | 999999 | |
| 1.53 | 27.44 | 1.26 | 22.41 | -21.69 | 31.59 | -49.79 | 116.92 | 0.7980 | -598.0 | -306.6 | |
| 1.44 | -49.00 | 1.21 | -49.00 | -22.93 | 30.98 | -50.40 | 118.20 | 0.8074 | -281.1 | 999999 | |
| 2.98 | -51.00 | 2.42 | -51.00 | -21.20 | 31.77 | -49.61 | 116.39 | 0.7949 | -582.1 | 999999 | |
| 3.61 | -51.00 | 2.95 | -51.00 | -21.46 | 31.55 | -49.83 | 116.63 | 0.7978 | -560.7 | 999999 | |
| 1.90 | 3.70 | 1.58 | 3.08 | -22.37 | 31.00 | -50.37 | 117.54 | 0.8055 | -500.2 | -380.4 | |
| 0.00 | 1.44 | 0.00 | 1.21 | -22.57 | 30.80 | -50.58 | 117.71 | 0.8079 | -273.0 | -224.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
