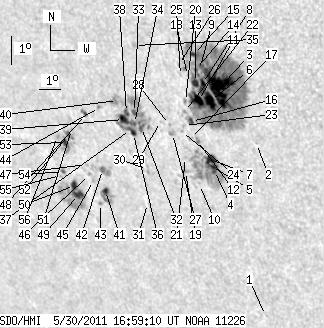

SDO HMI 2011-05-30 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.85 | 702.07 | 99.25 | 510.64 | -20.71 | 37.09 | -43.74 | 117.99 | 0.7335 | 268.4 | 151.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.40 | -27.29 | 38.45 | -42.37 | 126.82 | 0.7504 | 562.0 | 526.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -21.59 | 40.35 | -40.47 | 120.60 | 0.7035 | 613.0 | 559.4 | |
| 44.68 | 408.36 | 31.17 | 285.71 | -19.76 | 39.36 | -41.47 | 117.70 | 0.7062 | 1164.4 | 426.8 | |
| 1.53 | 74.02 | 1.11 | 53.73 | -22.45 | 38.19 | -42.63 | 120.68 | 0.7301 | 758.1 | 110.0 | |
| 3.34 | -4.00 | 2.41 | -4.00 | -22.32 | 38.11 | -42.71 | 120.47 | 0.7304 | 758.1 | 999999 | |
| 11.10 | -3.00 | 7.83 | -3.00 | -20.18 | 38.83 | -42.00 | 118.02 | 0.7137 | 879.3 | 999999 | |
| 7.04 | -4.00 | 5.08 | -4.00 | -22.09 | 38.15 | -42.67 | 120.20 | 0.7290 | 893.6 | 999999 | |
| 2.80 | -3.00 | 1.97 | -3.00 | -19.63 | 38.66 | -42.16 | 117.21 | 0.7133 | 722.1 | 999999 | |
| 1.35 | -3.00 | 0.95 | -3.00 | -19.08 | 38.75 | -42.08 | 116.52 | 0.7101 | 493.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -22.90 | 37.34 | -43.49 | 120.86 | 0.7408 | -513.0 | -476.8 | |
| 7.13 | -3.00 | 5.07 | -3.00 | -20.17 | 38.30 | -42.52 | 117.78 | 0.7193 | 636.8 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.96 | -21.47 | 37.80 | -43.02 | 119.24 | 0.7300 | 679.0 | 593.6 | |
| 5.60 | -3.00 | 3.96 | -3.00 | -19.59 | 38.36 | -42.46 | 117.04 | 0.7163 | 473.8 | 999999 | |
| 1.08 | -3.00 | 0.76 | -3.00 | -19.18 | 38.50 | -42.33 | 116.54 | 0.7132 | 539.8 | 999999 | |
| 2.71 | -3.00 | 1.90 | -3.00 | -18.70 | 38.56 | -42.26 | 115.93 | 0.7106 | 484.8 | 999999 | |
| 3.16 | -3.00 | 2.28 | -3.00 | -20.85 | 37.76 | -43.07 | 118.42 | 0.7279 | 543.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.18 | -21.40 | 37.51 | -43.31 | 119.02 | 0.7327 | 409.0 | 348.3 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -19.37 | 38.09 | -42.74 | 116.62 | 0.7185 | 344.0 | 269.7 | |
| 0.00 | 2.26 | 0.00 | 1.67 | -22.47 | 36.87 | -43.95 | 120.11 | 0.7437 | -313.0 | -299.6 | |
| 0.00 | 2.08 | 0.00 | 1.49 | -20.20 | 37.72 | -43.11 | 117.56 | 0.7257 | 344.0 | 258.3 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -22.01 | 37.05 | -43.77 | 119.61 | 0.7400 | -339.0 | -286.4 | |
| 0.00 | 1.72 | 0.00 | 1.24 | -20.52 | 37.56 | -43.26 | 117.91 | 0.7287 | 508.0 | 383.7 | |
| 0.00 | 1.53 | 0.00 | 1.11 | -20.97 | 37.40 | -43.43 | 118.43 | 0.7322 | 267.0 | 165.2 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -21.17 | 37.19 | -43.63 | 118.59 | 0.7351 | 178.0 | 126.8 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -19.36 | 37.78 | -43.04 | 116.49 | 0.7218 | 363.0 | 243.1 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -19.01 | 37.81 | -43.02 | 116.03 | 0.7201 | 86.0 | 132.6 | |
| 0.00 | 3.61 | 0.00 | 2.65 | -21.23 | 36.76 | -44.06 | 118.48 | 0.7398 | -658.0 | -587.2 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -20.94 | 36.73 | -44.09 | 118.10 | 0.7390 | -791.0 | -637.8 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -20.83 | 36.36 | -44.46 | 117.81 | 0.7424 | -380.0 | -375.5 | |
| 0.00 | 2.98 | 0.00 | 2.26 | -22.39 | 35.14 | -45.69 | 119.27 | 0.7607 | -702.0 | -594.7 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -23.50 | 34.65 | -46.18 | 120.45 | 0.7698 | -465.0 | -478.5 | |
| 2.98 | 69.60 | 2.23 | 52.32 | -21.02 | 35.41 | -45.41 | 117.67 | 0.7529 | -796.4 | -471.1 | |
| 2.53 | -32.00 | 1.89 | -32.00 | -20.53 | 35.28 | -45.55 | 117.00 | 0.7525 | -759.9 | 999999 | |
| 1.35 | -32.00 | 1.02 | -32.00 | -20.89 | 35.14 | -45.69 | 117.39 | 0.7552 | -789.1 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.85 | -18.39 | 36.04 | -44.78 | 114.53 | 0.7370 | -346.0 | -333.7 | |
| 2.08 | -32.00 | 1.57 | -32.00 | -21.21 | 34.96 | -45.86 | 117.73 | 0.7581 | 270.5 | 999999 | |
| 2.17 | -32.00 | 1.64 | -32.00 | -21.08 | 34.88 | -45.95 | 117.53 | 0.7586 | -449.8 | 999999 | |
| 2.62 | -32.00 | 1.97 | -32.00 | -20.53 | 34.91 | -45.92 | 116.85 | 0.7563 | -613.6 | 999999 | |
| 6.14 | -32.00 | 4.65 | -32.00 | -20.75 | 34.68 | -46.15 | 117.05 | 0.7594 | -719.5 | 999999 | |
| 0.00 | 10.74 | 0.00 | 8.12 | -20.14 | 34.63 | -46.19 | 116.26 | 0.7578 | -26.0 | -111.0 | |
| 2.80 | 13.99 | 2.23 | 11.17 | -23.05 | 32.81 | -48.02 | 119.19 | 0.7857 | -857.5 | -556.0 | |
| 2.98 | 12.46 | 2.36 | 9.85 | -22.37 | 32.98 | -47.85 | 118.41 | 0.7817 | -775.1 | -560.2 | |
| 0.00 | 1.81 | 0.00 | 1.46 | -23.48 | 32.35 | -48.47 | 119.53 | 0.7914 | -567.0 | -459.3 | |
| 0.00 | 1.26 | 0.00 | 0.97 | -20.35 | 33.70 | -47.13 | 116.19 | 0.7680 | -543.0 | -428.9 | |
| 0.00 | 1.44 | 0.00 | 1.16 | -22.72 | 32.37 | -48.46 | 118.62 | 0.7887 | -566.0 | -583.6 | |
| 0.00 | 1.72 | 0.00 | 1.38 | -22.52 | 32.26 | -48.56 | 118.34 | 0.7891 | -683.0 | -550.0 | |
| 0.00 | 1.17 | 0.00 | 0.94 | -22.19 | 32.26 | -48.56 | 117.95 | 0.7880 | -562.0 | -495.5 | |
| 1.44 | 3.16 | 1.13 | 2.47 | -20.57 | 32.93 | -47.89 | 116.19 | 0.7763 | 246.4 | -146.8 | |
| 6.68 | 48.74 | 5.48 | 40.27 | -23.17 | 31.39 | -49.44 | 118.82 | 0.7993 | -704.1 | -66.3 | |
| 3.70 | -49.00 | 3.03 | -49.00 | -22.87 | 31.33 | -49.49 | 118.44 | 0.7989 | -786.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.87 | -21.05 | 32.04 | -48.79 | 116.48 | 0.7866 | -561.0 | -386.9 | |
| 1.90 | 18.05 | 1.52 | 14.56 | -21.21 | 31.82 | -49.01 | 116.60 | 0.7892 | -633.0 | -531.3 | |
| 3.34 | -52.00 | 2.70 | -52.00 | -21.47 | 31.55 | -49.28 | 116.82 | 0.7925 | -614.9 | 999999 | |
| 1.62 | 2.44 | 1.34 | 2.01 | -22.41 | 31.00 | -49.83 | 117.77 | 0.8006 | -530.8 | -482.4 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -22.54 | 30.78 | -50.04 | 117.86 | 0.8030 | -177.0 | -178.3 | |
| 0.00 | 1.72 | 0.00 | 1.39 | -21.27 | 31.24 | -49.59 | 116.48 | 0.7949 | 235.0 | 209.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
