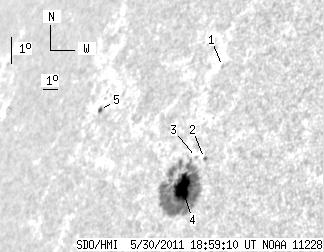

SDO HMI 2011-05-30 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.16 | 162.29 | 28.08 | 160.84 | 16.61 | 21.59 | -58.13 | 70.17 | 0.8669 | -705.5 | -190.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.08 | 20.44 | 22.05 | -57.67 | 65.74 | 0.8704 | -286.0 | -358.9 | |
| 0.99 | 1.44 | 0.96 | 1.39 | 17.46 | 22.58 | -57.14 | 68.98 | 0.8604 | -584.9 | -506.4 | |
| 0.00 | 1.26 | 0.00 | 1.24 | 17.50 | 22.08 | -57.63 | 69.05 | 0.8646 | -429.0 | -392.7 | |
| 25.73 | 155.89 | 25.30 | 153.83 | 16.51 | 21.72 | -57.99 | 70.25 | 0.8658 | -808.1 | -191.9 | |
| 1.44 | 2.62 | 1.82 | 3.30 | 19.12 | 14.54 | -65.18 | 68.75 | 0.9218 | 275.6 | 291.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
