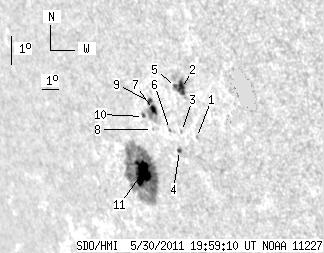

SDO HMI 2011-05-30 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.27 | 179.44 | 37.74 | 180.50 | -19.90 | 20.47 | -58.69 | 112.50 | 0.8713 | 217.0 | 111.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.91 | -19.26 | 23.80 | -55.36 | 112.50 | 0.8428 | -667.0 | -510.5 | |
| 6.86 | 14.17 | 6.24 | 12.89 | -17.69 | 23.71 | -55.45 | 110.65 | 0.8406 | -670.7 | -521.1 | |
| 0.00 | 1.35 | 0.00 | 1.26 | -19.06 | 23.04 | -56.12 | 112.09 | 0.8490 | -550.0 | -480.3 | |
| 1.62 | 2.44 | 1.54 | 2.30 | -19.67 | 22.60 | -56.56 | 112.69 | 0.8538 | -502.8 | -444.3 | |
| 0.63 | -2.00 | 0.58 | -2.00 | -17.63 | 23.40 | -55.76 | 110.50 | 0.8432 | -383.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.11 | -18.99 | 22.37 | -56.79 | 111.86 | 0.8545 | -550.0 | -537.3 | |
| 3.25 | 17.87 | 3.12 | 17.21 | -18.34 | 21.76 | -57.40 | 110.99 | 0.8585 | -620.2 | -284.7 | |
| 0.00 | 0.45 | 0.00 | 0.44 | -18.98 | 21.36 | -57.80 | 111.64 | 0.8629 | 119.0 | 94.8 | |
| 2.71 | -7.00 | 2.60 | -7.00 | -18.08 | 21.65 | -57.51 | 110.68 | 0.8590 | -381.6 | 999999 | |
| 0.90 | 1.99 | 0.88 | 1.95 | -18.56 | 21.04 | -58.12 | 111.10 | 0.8648 | 357.8 | 195.9 | |
| 22.30 | 139.01 | 22.78 | 142.43 | -20.35 | 19.93 | -59.23 | 112.90 | 0.8765 | 812.1 | 201.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
