SDO HMI 2011-05-30 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.76 | 688.47 | 104.91 | 483.77 | -20.68 | 37.03 | -41.58 | 118.91 | 0.7104 | 278.7 | 162.2 | |
|
previous
or next observation for the same group /

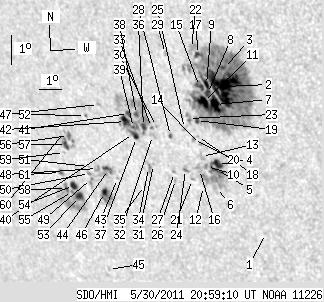

back to the solar disc SDO HMI 2011-05-30 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.75 | -24.52 | 39.42 | -39.19 | 125.11 | 0.7051 | 595.0 | 510.7 | |
| 52.72 | 408.77 | 35.63 | 277.08 | -19.71 | 39.28 | -39.33 | 118.66 | 0.6822 | 1152.1 | 448.1 | |
| 1.35 | -2.00 | 0.91 | -2.00 | -19.13 | 39.40 | -39.20 | 117.93 | 0.6782 | 844.4 | 999999 | |
| 5.96 | 37.55 | 4.15 | 26.34 | -22.23 | 38.17 | -40.44 | 121.48 | 0.7063 | 923.5 | 188.0 | |
| 4.06 | -4.00 | 2.84 | -4.00 | -22.39 | 38.07 | -40.54 | 121.64 | 0.7081 | 702.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -22.98 | 37.86 | -40.75 | 122.29 | 0.7132 | -21.0 | -11.5 | |
| 11.10 | -2.00 | 7.59 | -2.00 | -20.28 | 38.73 | -39.88 | 119.17 | 0.6911 | 918.4 | 999999 | |
| 3.43 | -2.00 | 2.35 | -2.00 | -19.93 | 38.50 | -40.11 | 118.58 | 0.6920 | 782.9 | 999999 | |
| 3.52 | -2.00 | 2.40 | -2.00 | -19.64 | 38.54 | -40.06 | 118.20 | 0.6902 | 733.1 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.46 | -22.29 | 37.67 | -40.94 | 121.30 | 0.7118 | 239.0 | 245.4 | |
| 8.12 | -2.00 | 5.59 | -2.00 | -20.18 | 38.25 | -40.36 | 118.80 | 0.6959 | 714.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -22.94 | 37.30 | -41.31 | 121.96 | 0.7188 | -540.0 | -317.0 | |
| 0.00 | 3.97 | 0.00 | 2.79 | -21.96 | 37.57 | -41.04 | 120.83 | 0.7114 | 505.0 | 402.8 | |
| 0.00 | 1.35 | 0.00 | 0.95 | -21.57 | 37.66 | -40.94 | 120.36 | 0.7086 | 660.0 | 518.1 | |
| 4.87 | -2.00 | 3.34 | -2.00 | -19.70 | 38.23 | -40.38 | 118.14 | 0.6939 | 488.4 | 999999 | |
| 0.00 | 5.51 | 0.00 | 3.89 | -22.39 | 37.33 | -41.28 | 121.26 | 0.7158 | -184.0 | -105.1 | |
| 3.61 | -2.00 | 2.45 | -2.00 | -18.67 | 38.49 | -40.12 | 116.86 | 0.6865 | 496.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -21.31 | 37.62 | -40.98 | 120.00 | 0.7078 | 697.0 | 532.1 | |
| 1.99 | -2.00 | 1.38 | -2.00 | -20.79 | 37.75 | -40.85 | 119.37 | 0.7041 | 672.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -21.41 | 37.41 | -41.19 | 120.02 | 0.7105 | 472.0 | 352.2 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -22.71 | 36.90 | -41.70 | 121.47 | 0.7218 | 211.0 | 136.6 | |
| 0.00 | 6.68 | 0.00 | 4.55 | -18.48 | 38.25 | -40.36 | 116.48 | 0.6884 | -115.0 | -110.0 | |
| 0.00 | 5.33 | 0.00 | 3.72 | -20.72 | 37.43 | -41.18 | 119.13 | 0.7072 | 329.0 | 360.5 | |
| 0.00 | 2.98 | 0.00 | 2.13 | -22.38 | 36.71 | -41.89 | 120.95 | 0.7222 | -508.0 | -464.2 | |
| 0.00 | 2.26 | 0.00 | 1.59 | -21.05 | 37.15 | -41.46 | 119.42 | 0.7117 | 263.0 | 160.2 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -22.70 | 36.15 | -42.46 | 121.09 | 0.7295 | 358.0 | 244.1 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -22.47 | 36.19 | -42.42 | 120.82 | 0.7281 | 598.0 | 369.3 | |
| 1.17 | 1.53 | 0.84 | 1.09 | -21.27 | 36.45 | -42.15 | 119.39 | 0.7200 | -792.8 | -783.8 | |
| 0.00 | 2.44 | 0.00 | 1.69 | -18.63 | 37.10 | -41.51 | 116.17 | 0.7020 | 421.0 | 354.5 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -20.97 | 35.94 | -42.67 | 118.77 | 0.7242 | -594.0 | -521.7 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -22.20 | 35.35 | -43.26 | 120.09 | 0.7356 | -620.0 | -506.9 | |
| 0.00 | 2.89 | 0.00 | 2.08 | -21.26 | 35.66 | -42.95 | 119.02 | 0.7284 | -663.0 | -554.6 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -21.00 | 35.71 | -42.90 | 118.70 | 0.7268 | -842.0 | -719.1 | |
| 0.00 | 4.51 | 0.00 | 3.30 | -22.30 | 35.08 | -43.52 | 120.09 | 0.7387 | -739.0 | -685.6 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -22.89 | 34.67 | -43.94 | 120.65 | 0.7453 | -712.0 | -562.8 | |
| 2.89 | 80.71 | 2.09 | 58.55 | -20.97 | 35.36 | -43.24 | 118.51 | 0.7303 | -886.0 | -406.4 | |
| 1.90 | -36.00 | 1.38 | -36.00 | -21.32 | 34.92 | -43.69 | 118.77 | 0.7364 | 266.5 | 999999 | |
| 1.99 | -36.00 | 1.44 | -36.00 | -20.57 | 35.19 | -43.42 | 117.93 | 0.7306 | -793.3 | 999999 | |
| 1.17 | -36.00 | 0.85 | -36.00 | -20.99 | 34.90 | -43.70 | 118.35 | 0.7352 | -749.2 | 999999 | |
| 2.89 | -36.00 | 2.11 | -36.00 | -21.19 | 34.83 | -43.78 | 118.56 | 0.7368 | -345.7 | 999999 | |
| 2.44 | -36.00 | 1.77 | -36.00 | -20.54 | 34.84 | -43.76 | 117.73 | 0.7341 | -609.4 | 999999 | |
| 5.69 | -36.00 | 4.16 | -36.00 | -20.80 | 34.61 | -43.99 | 117.97 | 0.7375 | -676.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -22.65 | 33.51 | -45.09 | 119.85 | 0.7559 | 328.0 | 178.7 | |
| 4.78 | 10.74 | 3.62 | 8.14 | -22.35 | 33.22 | -45.39 | 119.36 | 0.7577 | -688.4 | -478.0 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -25.65 | 31.68 | -46.93 | 122.75 | 0.7852 | -499.0 | -403.2 | |
| 2.44 | 12.64 | 1.87 | 9.69 | -23.10 | 32.70 | -45.90 | 120.08 | 0.7656 | -938.1 | -635.0 | |
| 0.00 | 1.44 | 0.00 | 1.07 | -20.24 | 33.59 | -45.02 | 116.84 | 0.7461 | -525.0 | -387.6 | |
| 0.00 | 2.80 | 0.00 | 2.14 | -22.31 | 32.71 | -45.89 | 119.11 | 0.7625 | -874.0 | -690.8 | |
| 0.72 | 3.70 | 0.56 | 2.86 | -22.63 | 32.29 | -46.32 | 119.34 | 0.7679 | -674.9 | -683.4 | |
| 0.00 | 1.44 | 0.00 | 1.11 | -22.47 | 32.26 | -46.34 | 119.12 | 0.7676 | -736.0 | -594.5 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -22.24 | 32.32 | -46.29 | 118.86 | 0.7662 | -633.0 | -603.5 | |
| 0.36 | 1.17 | 0.27 | 0.88 | -20.59 | 32.85 | -45.75 | 117.00 | 0.7549 | 266.5 | 244.4 | |
| 5.24 | 51.64 | 4.11 | 40.84 | -23.22 | 31.44 | -47.16 | 119.72 | 0.7782 | -757.2 | -86.9 | |
| 3.88 | -53.00 | 3.05 | -53.00 | -22.85 | 31.32 | -47.29 | 119.23 | 0.7781 | -794.8 | 999999 | |
| 0.27 | -53.00 | 0.21 | -53.00 | -23.05 | 31.18 | -47.43 | 119.42 | 0.7801 | -606.0 | 999999 | |
| 2.80 | 13.45 | 2.15 | 10.39 | -21.22 | 31.79 | -46.81 | 117.40 | 0.7678 | -709.4 | -593.7 | |
| 3.34 | -56.00 | 2.59 | -56.00 | -21.51 | 31.57 | -47.03 | 117.68 | 0.7710 | -674.2 | 999999 | |
| 2.71 | -53.00 | 2.14 | -53.00 | -22.95 | 30.93 | -47.67 | 119.20 | 0.7822 | -402.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.63 | -21.77 | 31.36 | -47.24 | 117.92 | 0.7739 | -266.0 | -253.2 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -21.09 | 31.65 | -46.95 | 117.18 | 0.7687 | -436.0 | -414.2 | |
| 1.35 | 3.07 | 1.07 | 2.42 | -22.42 | 30.88 | -47.73 | 118.54 | 0.7808 | -450.5 | -522.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
