SDO HMI 2011-05-30 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.60 | 713.26 | 96.21 | 497.27 | -20.73 | 37.03 | -41.02 | 119.24 | 0.7047 | 297.8 | 167.0 | |
|
previous
or next observation for the same group /

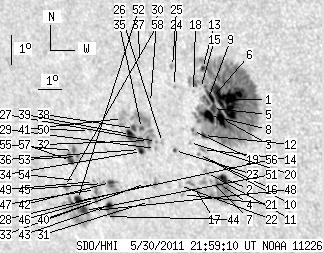

back to the solar disc SDO HMI 2011-05-30 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.18 | 417.10 | 35.68 | 280.63 | -19.68 | 39.23 | -38.82 | 118.89 | 0.6764 | 1146.2 | 453.8 | |
| 5.87 | 58.23 | 4.06 | 40.57 | -22.23 | 38.17 | -39.88 | 121.77 | 0.7004 | 914.1 | 176.0 | |
| 9.84 | -1.00 | 6.67 | -1.00 | -20.28 | 38.72 | -39.33 | 119.45 | 0.6850 | 955.1 | 999999 | |
| 3.70 | -2.00 | 2.57 | -2.00 | -22.42 | 37.94 | -40.11 | 121.90 | 0.7039 | 588.6 | 999999 | |
| 2.53 | -1.00 | 1.72 | -1.00 | -19.96 | 38.44 | -39.61 | 118.87 | 0.6866 | 718.5 | 999999 | |
| 2.80 | -1.00 | 1.90 | -1.00 | -19.64 | 38.49 | -39.56 | 118.46 | 0.6845 | 686.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.32 | -22.32 | 37.63 | -40.42 | 121.61 | 0.7067 | 305.0 | 229.6 | |
| 7.22 | -1.00 | 4.93 | -1.00 | -20.18 | 38.24 | -39.81 | 119.08 | 0.6898 | 769.3 | 999999 | |
| 2.80 | -1.00 | 1.90 | -1.00 | -19.70 | 38.31 | -39.74 | 118.45 | 0.6869 | 541.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -21.57 | 37.67 | -40.38 | 120.65 | 0.7026 | 585.0 | 498.2 | |
| 0.00 | 3.25 | 0.00 | 2.27 | -22.03 | 37.51 | -40.54 | 121.17 | 0.7064 | 436.0 | 402.3 | |
| 2.71 | -1.00 | 1.87 | -1.00 | -20.83 | 37.79 | -40.26 | 119.71 | 0.6978 | 569.4 | 999999 | |
| 1.81 | -1.00 | 1.22 | -1.00 | -18.67 | 38.40 | -39.65 | 117.09 | 0.6813 | 598.5 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.63 | -21.28 | 37.59 | -40.46 | 120.22 | 0.7020 | 577.0 | 468.1 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -19.31 | 38.13 | -39.92 | 117.84 | 0.6872 | 331.0 | 319.5 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -21.44 | 37.37 | -40.68 | 120.32 | 0.7052 | 389.0 | 275.5 | |
| 0.00 | 7.22 | 0.00 | 5.11 | -22.51 | 36.82 | -41.23 | 121.45 | 0.7160 | -447.0 | -345.0 | |
| 0.00 | 1.17 | 0.00 | 0.80 | -19.41 | 37.80 | -40.25 | 117.81 | 0.6912 | 291.0 | 175.7 | |
| 1.17 | 3.70 | 0.81 | 2.56 | -20.66 | 37.37 | -40.68 | 119.29 | 0.7016 | 381.4 | 396.4 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -21.05 | 37.11 | -40.94 | 119.68 | 0.7062 | 241.0 | 188.1 | |
| 0.00 | 2.17 | 0.00 | 1.55 | -22.74 | 36.20 | -41.85 | 121.44 | 0.7234 | 312.0 | 193.0 | |
| 0.00 | 1.81 | 0.00 | 1.29 | -22.44 | 36.18 | -41.87 | 121.05 | 0.7223 | 414.0 | 179.9 | |
| 1.26 | 1.35 | 0.89 | 0.96 | -21.30 | 36.37 | -41.68 | 119.66 | 0.7152 | -784.9 | -621.5 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -19.24 | 37.05 | -41.00 | 117.23 | 0.6990 | 540.0 | 493.3 | |
| 0.00 | 2.71 | 0.00 | 1.86 | -18.60 | 37.15 | -40.90 | 116.41 | 0.6951 | 477.0 | 370.0 | |
| 0.00 | 2.17 | 0.00 | 1.54 | -21.04 | 35.94 | -42.11 | 119.11 | 0.7187 | -489.0 | -477.8 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -21.00 | 35.68 | -42.37 | 118.95 | 0.7212 | -810.0 | -755.7 | |
| 1.26 | 4.78 | 0.92 | 3.47 | -22.37 | 35.14 | -42.91 | 120.46 | 0.7328 | -854.3 | -624.5 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -21.23 | 35.56 | -42.49 | 119.19 | 0.7235 | -781.0 | -631.3 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -19.74 | 35.85 | -42.20 | 117.37 | 0.7142 | 259.0 | 323.2 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -22.95 | 34.63 | -43.42 | 120.97 | 0.7404 | -672.0 | -606.4 | |
| 3.61 | 70.60 | 2.59 | 50.72 | -20.97 | 35.34 | -42.71 | 118.75 | 0.7247 | -856.3 | -471.8 | |
| 0.00 | 1.17 | 0.00 | 0.86 | -22.36 | 34.69 | -43.36 | 120.25 | 0.7374 | -664.0 | -609.5 | |
| 1.81 | -32.00 | 1.31 | -32.00 | -21.32 | 34.90 | -43.15 | 119.01 | 0.7308 | 220.4 | 999999 | |
| 2.08 | -32.00 | 1.49 | -32.00 | -20.58 | 35.17 | -42.88 | 118.16 | 0.7249 | -779.0 | 999999 | |
| 1.26 | -32.00 | 0.91 | -32.00 | -21.26 | 34.88 | -43.17 | 118.92 | 0.7307 | -239.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -18.46 | 35.77 | -42.28 | 115.62 | 0.7100 | -571.0 | -464.7 | |
| 2.53 | -32.00 | 1.82 | -32.00 | -20.57 | 34.86 | -43.19 | 118.03 | 0.7282 | -630.2 | 999999 | |
| 5.78 | -32.00 | 4.18 | -32.00 | -20.77 | 34.61 | -43.44 | 118.17 | 0.7316 | -678.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.94 | -22.62 | 33.62 | -44.43 | 120.10 | 0.7492 | 575.0 | 291.3 | |
| 0.00 | 10.83 | 0.00 | 7.84 | -20.25 | 34.44 | -43.61 | 117.42 | 0.7314 | 20.0 | 34.2 | |
| 2.26 | 9.57 | 1.69 | 7.17 | -22.32 | 33.10 | -44.95 | 119.50 | 0.7533 | -817.8 | -488.6 | |
| 1.99 | 14.54 | 1.51 | 11.04 | -23.07 | 32.69 | -45.36 | 120.26 | 0.7603 | -917.5 | -625.8 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -23.43 | 32.38 | -45.67 | 120.58 | 0.7646 | -543.0 | -474.4 | |
| 0.00 | 2.17 | 0.00 | 1.64 | -22.34 | 32.71 | -45.34 | 119.38 | 0.7572 | -778.0 | -728.0 | |
| 1.08 | 2.89 | 0.83 | 2.21 | -22.86 | 32.16 | -45.89 | 119.80 | 0.7647 | -734.8 | -647.6 | |
| 0.00 | 6.59 | 0.00 | 5.02 | -22.54 | 32.30 | -45.75 | 119.45 | 0.7620 | -761.0 | -601.2 | |
| 0.00 | 1.35 | 0.00 | 1.04 | -23.23 | 31.95 | -46.10 | 120.16 | 0.7681 | -503.0 | -386.2 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -22.28 | 32.32 | -45.73 | 119.13 | 0.7609 | -695.0 | -607.5 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -20.62 | 32.79 | -45.26 | 117.24 | 0.7499 | 404.0 | 285.1 | |
| 4.88 | 49.84 | 3.79 | 38.99 | -23.22 | 31.47 | -46.58 | 119.96 | 0.7727 | -783.3 | -116.8 | |
| 4.24 | -51.00 | 3.30 | -51.00 | -22.86 | 31.30 | -46.75 | 119.44 | 0.7730 | -812.2 | 999999 | |
| 0.90 | 14.26 | 0.69 | 10.91 | -21.46 | 31.90 | -46.15 | 117.94 | 0.7620 | -826.7 | -567.5 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -22.24 | 31.52 | -46.53 | 118.77 | 0.7686 | -604.0 | -512.7 | |
| 2.26 | -53.00 | 1.72 | -53.00 | -21.26 | 31.79 | -46.26 | 117.66 | 0.7624 | -727.8 | 999999 | |
| 1.63 | -51.00 | 1.27 | -51.00 | -22.95 | 30.96 | -47.09 | 119.43 | 0.7766 | -435.9 | 999999 | |
| 3.79 | -53.00 | 2.91 | -53.00 | -21.58 | 31.52 | -46.53 | 117.95 | 0.7663 | -635.3 | 999999 | |
| 1.35 | 3.16 | 1.06 | 2.47 | -22.43 | 30.86 | -47.19 | 118.75 | 0.7757 | -449.3 | -572.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
