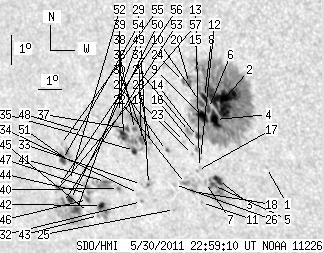

SDO HMI 2011-05-30 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.10 | 709.20 | 98.79 | 491.23 | -20.76 | 36.85 | -40.65 | 119.48 | 0.7008 | 287.0 | 167.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.66 | -21.89 | 40.34 | -37.16 | 122.84 | 0.6694 | 455.0 | 338.2 | |
| 47.58 | 425.27 | 31.70 | 284.07 | -19.71 | 39.17 | -38.33 | 119.19 | 0.6711 | 1147.1 | 455.0 | |
| 5.69 | 36.66 | 3.91 | 25.28 | -22.30 | 38.19 | -39.30 | 122.17 | 0.6946 | 925.7 | 335.4 | |
| 11.02 | -2.00 | 7.42 | -2.00 | -20.32 | 38.70 | -38.80 | 119.78 | 0.6793 | 936.9 | 999999 | |
| 3.79 | -3.00 | 2.62 | -3.00 | -22.46 | 37.93 | -39.57 | 122.24 | 0.6983 | 564.3 | 999999 | |
| 3.52 | -2.00 | 2.37 | -2.00 | -19.96 | 38.51 | -38.98 | 119.20 | 0.6797 | 824.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.38 | -22.36 | 37.62 | -39.88 | 121.94 | 0.7011 | 388.0 | 236.8 | |
| 4.51 | -2.00 | 3.04 | -2.00 | -19.61 | 38.45 | -39.05 | 118.68 | 0.6787 | 696.1 | 999999 | |
| 8.67 | -2.00 | 5.87 | -2.00 | -20.22 | 38.18 | -39.31 | 119.38 | 0.6845 | 721.5 | 999999 | |
| 2.98 | -2.00 | 2.01 | -2.00 | -19.80 | 38.27 | -39.23 | 118.85 | 0.6816 | 596.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -23.01 | 37.21 | -40.28 | 122.58 | 0.7086 | 498.0 | 378.5 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -21.57 | 37.67 | -39.83 | 120.94 | 0.6967 | 643.0 | 500.5 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -21.87 | 37.53 | -39.97 | 121.25 | 0.6996 | 603.0 | 459.7 | |
| 2.71 | -2.00 | 1.85 | -2.00 | -20.86 | 37.77 | -39.72 | 120.04 | 0.6921 | 567.5 | 999999 | |
| 1.90 | -2.00 | 1.27 | -2.00 | -18.71 | 38.41 | -39.08 | 117.41 | 0.6750 | 606.2 | 999999 | |
| 0.00 | 3.07 | 0.00 | 2.11 | -21.28 | 37.64 | -39.86 | 120.53 | 0.6956 | 785.0 | 531.9 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -21.96 | 37.41 | -40.09 | 121.32 | 0.7014 | 372.0 | 370.1 | |
| 1.35 | 6.23 | 0.95 | 4.35 | -22.65 | 36.95 | -40.54 | 121.98 | 0.7095 | 193.5 | -101.4 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -21.44 | 37.37 | -40.12 | 120.61 | 0.6993 | 396.0 | 297.2 | |
| 3.07 | -2.00 | 2.07 | -2.00 | -19.15 | 37.95 | -39.54 | 117.80 | 0.6822 | 587.5 | 999999 | |
| 0.00 | 6.05 | 0.00 | 4.15 | -20.70 | 37.49 | -40.01 | 119.67 | 0.6945 | 561.0 | 406.6 | |
| 0.00 | 4.79 | 0.00 | 3.36 | -22.38 | 36.74 | -40.75 | 121.53 | 0.7104 | -420.0 | -405.0 | |
| 0.00 | 1.17 | 0.00 | 0.81 | -21.02 | 37.17 | -40.33 | 119.94 | 0.6994 | 255.0 | 184.6 | |
| 0.90 | -2.00 | 0.61 | -2.00 | -19.09 | 37.72 | -39.77 | 117.60 | 0.6845 | 443.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.29 | -23.23 | 35.95 | -41.55 | 122.22 | 0.7227 | -595.0 | -491.5 | |
| 0.00 | 1.90 | 0.00 | 1.34 | -22.41 | 36.25 | -41.24 | 121.32 | 0.7157 | 473.0 | 304.4 | |
| 0.45 | 1.81 | 0.32 | 1.27 | -21.30 | 36.30 | -41.20 | 119.89 | 0.7101 | -917.2 | -762.5 | |
| 0.00 | 1.35 | 0.00 | 0.96 | -21.04 | 35.69 | -41.81 | 119.25 | 0.7155 | -736.0 | -654.5 | |
| 0.90 | 3.88 | 0.65 | 2.79 | -22.40 | 35.11 | -42.39 | 120.75 | 0.7276 | -799.9 | -533.3 | |
| 0.00 | 2.26 | 0.00 | 1.60 | -21.33 | 35.50 | -42.00 | 119.55 | 0.7187 | -649.0 | -535.9 | |
| 3.07 | 71.87 | 2.18 | 51.25 | -20.97 | 35.32 | -42.18 | 118.99 | 0.7191 | -914.7 | -399.7 | |
| 0.00 | 1.26 | 0.00 | 0.92 | -22.95 | 34.58 | -42.92 | 121.21 | 0.7354 | -678.0 | -556.8 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -22.40 | 34.79 | -42.70 | 120.60 | 0.7308 | -657.0 | -556.0 | |
| 0.00 | 1.53 | 0.00 | 1.12 | -22.69 | 34.55 | -42.95 | 120.86 | 0.7346 | -636.0 | -522.1 | |
| 1.17 | -31.00 | 0.84 | -31.00 | -21.29 | 34.89 | -42.60 | 119.22 | 0.7250 | -172.2 | 999999 | |
| 1.90 | -31.00 | 1.35 | -31.00 | -20.61 | 35.13 | -42.36 | 118.44 | 0.7196 | -763.9 | 999999 | |
| 2.26 | -31.00 | 1.61 | -31.00 | -20.57 | 34.84 | -42.66 | 118.26 | 0.7226 | -583.4 | 999999 | |
| 6.77 | -31.00 | 4.86 | -31.00 | -20.80 | 34.58 | -42.92 | 118.44 | 0.7263 | -675.1 | 999999 | |
| 0.00 | 5.15 | 0.00 | 3.67 | -20.06 | 34.66 | -42.84 | 117.51 | 0.7224 | -70.0 | -98.6 | |
| 1.17 | 4.15 | 0.86 | 3.06 | -22.52 | 33.70 | -43.79 | 120.26 | 0.7424 | 470.8 | 165.7 | |
| 0.45 | 16.97 | 0.33 | 12.64 | -22.29 | 33.20 | -44.29 | 119.75 | 0.7465 | -876.2 | -537.1 | |
| 3.16 | 17.25 | 2.38 | 12.97 | -23.07 | 32.69 | -44.80 | 120.51 | 0.7548 | -917.9 | -563.4 | |
| 0.00 | 1.44 | 0.00 | 1.10 | -23.40 | 32.41 | -45.09 | 120.79 | 0.7589 | -525.0 | -470.7 | |
| 0.90 | 12.64 | 0.68 | 9.55 | -22.67 | 32.25 | -45.24 | 119.83 | 0.7576 | -711.7 | -593.1 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -23.29 | 31.98 | -45.51 | 120.49 | 0.7627 | -459.0 | -393.2 | |
| 1.72 | -44.00 | 1.30 | -44.00 | -22.87 | 32.12 | -45.37 | 120.02 | 0.7596 | -611.6 | 999999 | |
| 1.26 | -44.00 | 0.95 | -44.00 | -22.47 | 32.29 | -45.21 | 119.60 | 0.7565 | -730.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -20.65 | 32.78 | -44.72 | 117.50 | 0.7445 | 389.0 | 318.1 | |
| 5.33 | 53.45 | 4.10 | 41.42 | -23.22 | 31.44 | -46.05 | 120.18 | 0.7676 | -748.6 | -98.5 | |
| 4.24 | -49.00 | 3.27 | -49.00 | -22.86 | 31.32 | -46.18 | 119.68 | 0.7675 | -764.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -21.62 | 31.80 | -45.70 | 118.33 | 0.7581 | -683.0 | -627.3 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -22.24 | 31.54 | -45.96 | 119.00 | 0.7630 | -684.0 | -570.7 | |
| 2.89 | -49.00 | 2.24 | -49.00 | -22.95 | 30.94 | -46.56 | 119.64 | 0.7715 | -401.8 | 999999 | |
| 4.51 | 11.92 | 3.43 | 9.03 | -21.55 | 31.49 | -46.00 | 118.12 | 0.7609 | -639.6 | -677.2 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -21.06 | 31.60 | -45.90 | 117.55 | 0.7581 | -312.0 | -374.0 | |
| 2.26 | 2.98 | 1.75 | 2.30 | -22.46 | 30.87 | -46.63 | 119.01 | 0.7704 | -531.1 | -466.8 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -22.59 | 30.72 | -46.78 | 119.11 | 0.7724 | -98.0 | -162.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
