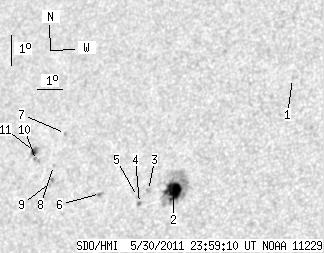

SDO HMI 2011-05-30 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.75 | 86.97 | 15.28 | 56.03 | 15.63 | 40.40 | -36.54 | 63.86 | 0.6404 | -407.8 | -171.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.73 | 18.99 | 45.25 | -31.69 | 55.82 | 0.6026 | 658.0 | 513.8 | |
| 19.96 | 64.66 | 12.67 | 41.03 | 15.41 | 41.43 | -35.51 | 63.65 | 0.6271 | -1051.8 | -375.6 | |
| 0.00 | 1.99 | 0.00 | 1.28 | 15.45 | 40.45 | -36.49 | 64.14 | 0.6393 | -728.0 | -585.6 | |
| 0.45 | 1.63 | 0.29 | 1.05 | 15.04 | 40.18 | -36.76 | 64.88 | 0.6406 | -677.6 | -530.8 | |
| 0.00 | 1.63 | 0.00 | 1.05 | 15.27 | 40.05 | -36.89 | 64.62 | 0.6432 | -561.0 | -489.1 | |
| 0.00 | 2.26 | 0.00 | 1.49 | 15.38 | 38.55 | -38.39 | 65.23 | 0.6617 | 790.0 | 653.2 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 17.30 | 36.65 | -40.29 | 63.47 | 0.6924 | 575.0 | 523.0 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 16.29 | 36.41 | -40.53 | 64.97 | 0.6907 | 671.0 | 538.0 | |
| 0.00 | 2.53 | 0.00 | 1.72 | 15.75 | 36.42 | -40.52 | 65.71 | 0.6884 | 712.0 | 663.9 | |
| 0.00 | 2.98 | 0.00 | 2.06 | 16.45 | 35.65 | -41.29 | 65.09 | 0.7000 | 660.0 | 635.5 | |
| 3.34 | 6.05 | 2.32 | 4.20 | 16.74 | 35.49 | -41.45 | 64.77 | 0.7030 | 656.0 | 406.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
