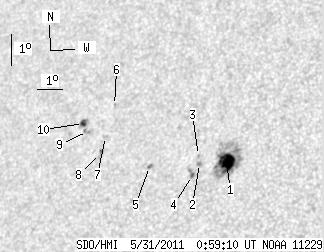

SDO HMI 2011-05-31 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.02 | 95.99 | 15.95 | 61.45 | 15.61 | 40.34 | -36.05 | 63.61 | 0.6342 | -465.3 | -150.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.41 | 71.07 | 12.86 | 44.77 | 15.44 | 41.49 | -34.90 | 63.25 | 0.6197 | -1064.1 | -341.6 | |
| 0.00 | 2.08 | 0.00 | 1.33 | 15.42 | 40.45 | -35.94 | 63.88 | 0.6324 | -808.0 | -590.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 15.68 | 40.36 | -36.03 | 63.56 | 0.6347 | -629.0 | -516.6 | |
| 1.72 | 3.52 | 1.10 | 2.25 | 15.05 | 40.25 | -36.14 | 64.55 | 0.6329 | -631.5 | -585.9 | |
| 0.00 | 2.08 | 0.00 | 1.36 | 15.35 | 38.49 | -37.90 | 65.03 | 0.6557 | 802.0 | 616.0 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 17.31 | 36.60 | -39.79 | 63.23 | 0.6867 | 773.0 | 567.2 | |
| 0.00 | 1.72 | 0.00 | 1.16 | 16.32 | 36.47 | -39.91 | 64.65 | 0.6837 | 722.0 | 566.7 | |
| 0.00 | 3.34 | 0.00 | 2.26 | 15.78 | 36.40 | -39.99 | 65.43 | 0.6823 | 758.0 | 635.3 | |
| 0.00 | 3.52 | 0.00 | 2.42 | 16.49 | 35.68 | -40.71 | 64.79 | 0.6935 | 739.0 | 585.1 | |
| 2.89 | 6.23 | 1.99 | 4.29 | 16.74 | 35.45 | -40.94 | 64.55 | 0.6973 | 674.9 | 499.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
