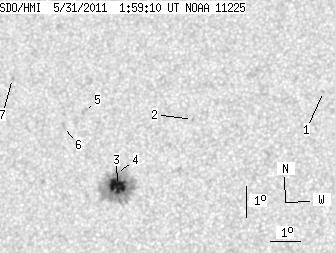

SDO HMI 2011-05-31 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.61 | 106.94 | 9.56 | 58.09 | 16.93 | 59.12 | -16.72 | 42.11 | 0.4124 | -1015.3 | -467.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.58 | 19.69 | 65.71 | -10.13 | 25.29 | 0.3892 | -786.0 | -568.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 18.80 | 61.46 | -14.37 | 35.01 | 0.4114 | -776.0 | -587.4 | |
| 16.53 | 97.64 | 8.97 | 52.95 | 16.69 | 59.17 | -16.67 | 42.44 | 0.4090 | -1238.0 | -460.8 | |
| 1.08 | -3.00 | 0.59 | -3.00 | 17.08 | 59.10 | -16.74 | 41.90 | 0.4140 | -490.5 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.60 | 19.07 | 57.82 | -18.02 | 40.70 | 0.4501 | -306.0 | -522.7 | |
| 0.00 | 2.62 | 0.00 | 1.45 | 18.59 | 57.16 | -18.67 | 42.44 | 0.4516 | -764.0 | -464.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 20.16 | 55.22 | -20.62 | 42.77 | 0.4888 | -757.0 | -563.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
