SDO HMI 2011-05-31 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.64 | 77.90 | 26.97 | 75.49 | 21.14 | 131.54 | 56.25 | 295.39 | 0.8598 | -190.0 | -46.2 | |
|
previous
or next observation for the same group /

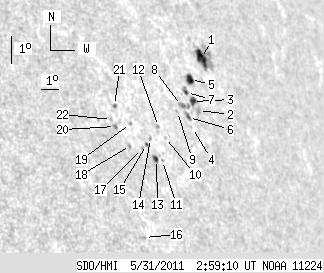

back to the solar disc SDO HMI 2011-05-31 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.30 | 28.72 | 10.52 | 29.54 | 22.32 | 133.28 | 57.99 | 296.24 | 0.8766 | -568.9 | 60.9 | |
| 0.00 | 3.61 | 0.00 | 3.52 | 20.59 | 132.03 | 56.74 | 294.64 | 0.8632 | -183.0 | -172.3 | |
| 4.06 | 7.59 | 3.95 | 7.36 | 20.88 | 131.84 | 56.56 | 295.02 | 0.8623 | -459.8 | -419.6 | |
| 0.00 | 0.36 | 0.00 | 0.34 | 20.03 | 131.36 | 56.07 | 294.18 | 0.8566 | -483.0 | -489.0 | |
| 5.33 | 6.41 | 5.25 | 6.31 | 21.61 | 132.16 | 56.87 | 295.75 | 0.8664 | -436.3 | -375.2 | |
| 1.08 | 3.70 | 1.04 | 3.54 | 20.35 | 131.31 | 56.02 | 294.56 | 0.8568 | -545.8 | -475.1 | |
| 1.72 | 3.70 | 1.66 | 3.59 | 21.18 | 131.66 | 56.37 | 295.40 | 0.8615 | -456.4 | -466.7 | |
| 0.00 | 3.34 | 0.00 | 3.19 | 20.74 | 131.12 | 55.83 | 295.06 | 0.8561 | -704.0 | -667.5 | |
| 0.00 | 1.17 | 0.00 | 1.11 | 20.54 | 130.77 | 55.48 | 294.92 | 0.8529 | -548.0 | -502.8 | |
| 0.00 | 0.81 | 0.00 | 0.74 | 19.68 | 129.64 | 54.35 | 294.25 | 0.8413 | 158.0 | 147.6 | |
| 0.00 | 0.90 | 0.00 | 0.81 | 18.93 | 129.11 | 53.82 | 293.53 | 0.8349 | 280.0 | 242.5 | |
| 0.00 | 1.26 | 0.00 | 1.15 | 20.04 | 129.43 | 54.14 | 294.72 | 0.8403 | 395.0 | 299.4 | |
| 2.44 | 3.79 | 2.17 | 3.37 | 18.96 | 128.79 | 53.51 | 293.65 | 0.8321 | 561.6 | 438.6 | |
| 0.00 | 1.35 | 0.00 | 1.21 | 19.64 | 128.79 | 53.50 | 294.44 | 0.8338 | 344.0 | 270.7 | |
| 1.26 | 1.72 | 1.12 | 1.52 | 19.44 | 128.48 | 53.19 | 294.30 | 0.8305 | 408.1 | 412.6 | |
| 0.00 | 1.17 | 0.00 | 0.99 | 16.44 | 127.10 | 51.81 | 291.14 | 0.8104 | -599.0 | -481.8 | |
| 0.00 | 0.81 | 0.00 | 0.71 | 19.31 | 128.20 | 52.91 | 294.23 | 0.8277 | 548.0 | 439.9 | |
| 0.00 | 1.35 | 0.00 | 1.17 | 19.40 | 127.60 | 52.31 | 294.51 | 0.8225 | 455.0 | 375.1 | |
| 0.00 | 1.17 | 0.00 | 1.03 | 20.12 | 127.94 | 52.65 | 295.25 | 0.8275 | 425.0 | 347.7 | |
| 0.00 | 2.26 | 0.00 | 1.94 | 20.01 | 127.09 | 51.80 | 295.39 | 0.8196 | 660.0 | 541.8 | |
| 1.45 | 1.45 | 1.26 | 1.26 | 20.70 | 127.37 | 52.08 | 296.11 | 0.8239 | 425.9 | 0.0 | |
| 0.00 | 1.26 | 0.00 | 1.09 | 20.23 | 126.99 | 51.70 | 295.69 | 0.8192 | 674.0 | 567.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
