SDO HMI 2011-05-31 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.93 | 71.90 | 19.24 | 55.41 | -17.96 | 26.73 | -48.01 | 112.94 | 0.7699 | 610.5 | 480.8 | |
|
previous
or next observation for the same group /

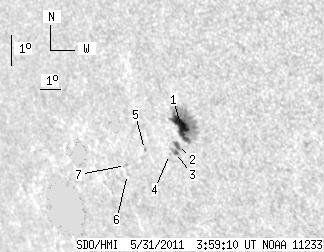

back to the solar disc SDO HMI 2011-05-31 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.87 | 60.44 | 16.07 | 46.33 | -17.83 | 26.92 | -47.82 | 112.84 | 0.7677 | 770.8 | 542.3 | |
| 3.16 | 8.13 | 2.46 | 6.34 | -18.40 | 26.52 | -48.22 | 113.43 | 0.7734 | 638.8 | 511.6 | |
| 0.90 | -2.00 | 0.71 | -2.00 | -18.63 | 26.34 | -48.40 | 113.65 | 0.7759 | 583.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -18.69 | 26.02 | -48.72 | 113.63 | 0.7793 | 550.0 | 508.0 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -18.52 | 24.85 | -49.89 | 113.07 | 0.7904 | 539.0 | 357.0 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -19.31 | 23.66 | -51.08 | 113.69 | 0.8040 | -599.0 | -538.0 | |
| 0.00 | 1.26 | 0.00 | 1.05 | -19.02 | 23.68 | -51.06 | 113.34 | 0.8031 | -674.0 | -580.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
