SDO HMI 2011-05-31 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.88 | 21.23 | 22.45 | 132.88 | 16.22 | 158.86 | 84.67 | 286.37 | 0.9964 | 188.5 | -121.5 | |
|
previous
or next observation for the same group /

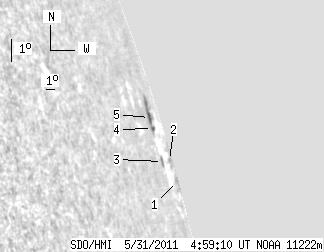

back to the solar disc SDO HMI 2011-05-31 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.16 | 0.00 | 41.90 | 15.20 | 160.93 | 86.74 | 285.27 | 0.9989 | -439.0 | -404.5 | |
| 0.00 | 1.72 | 0.00 | 14.40 | 15.86 | 160.24 | 86.06 | 285.94 | 0.9983 | -355.0 | -293.9 | |
| 0.00 | 3.34 | 0.00 | 15.20 | 15.78 | 157.50 | 83.31 | 285.97 | 0.9946 | 12.0 | 35.7 | |
| 0.90 | 13.01 | 4.14 | 61.38 | 16.83 | 157.38 | 83.19 | 287.03 | 0.9945 | 263.1 | 185.3 | |
| 3.98 | -4.00 | 18.31 | -4.00 | 17.18 | 157.48 | 83.29 | 287.38 | 0.9947 | 245.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
