SDO HMI 2011-05-31 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.51 | 59.51 | 22.84 | 59.69 | 21.30 | 131.71 | 57.52 | 295.23 | 0.8702 | -229.5 | -60.0 | |
|
previous
or next observation for the same group /

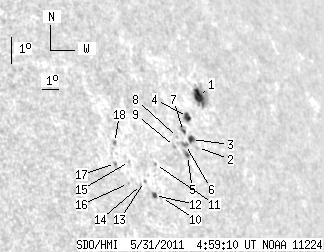

back to the solar disc SDO HMI 2011-05-31 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.76 | 23.67 | 10.28 | 25.06 | 22.31 | 133.26 | 59.07 | 295.96 | 0.8845 | -582.9 | -7.2 | |
| 0.00 | 1.72 | 0.00 | 1.73 | 20.62 | 132.11 | 57.92 | 294.37 | 0.8725 | -119.0 | -141.8 | |
| 2.35 | 3.79 | 2.35 | 3.80 | 20.88 | 131.89 | 57.71 | 294.71 | 0.8714 | -493.4 | -328.9 | |
| 4.34 | 5.69 | 4.40 | 5.77 | 21.64 | 132.12 | 57.93 | 295.50 | 0.8746 | -486.0 | -303.3 | |
| 1.36 | 3.61 | 1.33 | 3.55 | 20.35 | 131.34 | 57.15 | 294.26 | 0.8659 | -500.7 | -492.0 | |
| 0.81 | 3.25 | 0.80 | 3.21 | 20.71 | 131.43 | 57.24 | 294.64 | 0.8674 | -671.6 | -592.8 | |
| 1.63 | 3.61 | 1.62 | 3.60 | 21.14 | 131.56 | 57.37 | 295.08 | 0.8693 | -481.7 | -464.5 | |
| 0.00 | 0.90 | 0.00 | 0.89 | 20.93 | 131.08 | 56.89 | 294.98 | 0.8650 | -526.0 | -483.4 | |
| 0.00 | 1.36 | 0.00 | 1.31 | 20.64 | 130.72 | 56.54 | 294.74 | 0.8616 | -524.0 | -434.1 | |
| 0.00 | 0.72 | 0.00 | 0.66 | 18.96 | 129.08 | 54.89 | 293.26 | 0.8442 | 344.0 | 258.4 | |
| 0.00 | 1.17 | 0.00 | 1.09 | 20.03 | 129.29 | 55.10 | 294.43 | 0.8484 | 257.0 | 234.5 | |
| 2.26 | 3.16 | 2.06 | 2.88 | 19.02 | 128.72 | 54.53 | 293.42 | 0.8412 | 552.5 | 477.1 | |
| 0.00 | 1.26 | 0.00 | 1.15 | 19.47 | 128.38 | 54.19 | 294.04 | 0.8393 | 466.0 | 477.9 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 19.37 | 128.17 | 53.98 | 293.98 | 0.8372 | 592.0 | 551.8 | |
| 0.00 | 0.99 | 0.00 | 0.89 | 20.11 | 127.87 | 53.68 | 294.93 | 0.8365 | 345.0 | 272.6 | |
| 0.00 | 0.99 | 0.00 | 0.88 | 19.39 | 127.47 | 53.28 | 294.21 | 0.8311 | 346.0 | 329.0 | |
| 0.00 | 1.36 | 0.00 | 1.20 | 20.03 | 127.07 | 52.88 | 295.08 | 0.8293 | 652.0 | 600.8 | |
| 0.00 | 1.81 | 0.00 | 1.61 | 20.72 | 127.36 | 53.17 | 295.79 | 0.8336 | 537.0 | 389.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
