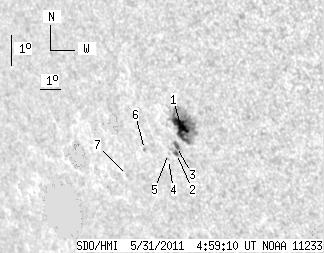

SDO HMI 2011-05-31 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.76 | 72.62 | 18.12 | 55.35 | -17.95 | 26.78 | -47.41 | 113.12 | 0.7639 | 675.7 | 477.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.32 | 61.70 | 16.24 | 46.83 | -17.83 | 26.94 | -47.25 | 113.02 | 0.7619 | 799.8 | 508.6 | |
| 1.08 | 6.87 | 0.84 | 5.30 | -18.63 | 26.41 | -47.78 | 113.86 | 0.7696 | 460.7 | 536.6 | |
| 1.36 | -2.00 | 1.04 | -2.00 | -18.40 | 26.49 | -47.70 | 113.60 | 0.7681 | 730.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -18.81 | 25.95 | -48.24 | 113.95 | 0.7748 | 500.0 | 401.1 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -18.62 | 26.03 | -48.16 | 113.73 | 0.7735 | 409.0 | 349.5 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -18.48 | 24.91 | -49.28 | 113.21 | 0.7844 | 489.0 | 418.8 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -19.31 | 23.72 | -50.47 | 113.87 | 0.7982 | -587.0 | -526.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
