SDO HMI 2011-05-31 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.09 | 696.28 | 98.06 | 454.10 | -20.71 | 36.86 | -36.23 | 121.87 | 0.6522 | 258.0 | 206.6 | |
|
previous
or next observation for the same group /

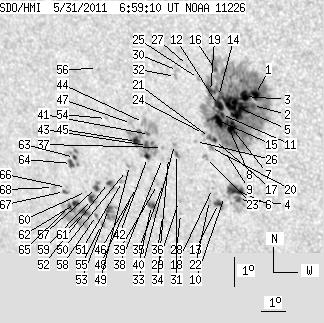

back to the solar disc SDO HMI 2011-05-31 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.97 | 441.62 | 3.11 | 279.76 | -19.44 | 39.68 | -33.41 | 121.79 | 0.6132 | 1307.2 | 464.1 | |
| 2.08 | -1.00 | 1.31 | -1.00 | -19.79 | 39.48 | -33.61 | 122.18 | 0.6176 | 863.4 | 999999 | |
| 7.41 | -1.00 | 4.66 | -1.00 | -19.50 | 39.24 | -33.85 | 121.59 | 0.6187 | 1275.7 | 999999 | |
| 2.17 | 31.08 | 1.41 | 20.25 | -22.84 | 38.11 | -34.98 | 125.55 | 0.6517 | 709.1 | 311.4 | |
| 31.98 | -1.00 | 20.27 | -1.00 | -19.82 | 38.81 | -34.28 | 121.77 | 0.6256 | 1140.3 | 999999 | |
| 12.56 | -4.00 | 8.17 | -4.00 | -22.51 | 38.05 | -35.05 | 125.06 | 0.6504 | 836.0 | 999999 | |
| 7.95 | -1.00 | 5.08 | -1.00 | -20.53 | 38.51 | -34.58 | 122.60 | 0.6332 | 1072.5 | 999999 | |
| 1.81 | -1.00 | 1.16 | -1.00 | -20.33 | 38.33 | -34.77 | 122.20 | 0.6342 | 951.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -21.24 | 38.01 | -35.09 | 123.28 | 0.6431 | 180.0 | 261.4 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -22.74 | 37.57 | -35.52 | 125.06 | 0.6569 | 435.0 | 406.6 | |
| 1.17 | -1.00 | 0.75 | -1.00 | -20.07 | 38.20 | -34.90 | 121.75 | 0.6342 | 830.5 | 999999 | |
| 6.60 | -1.00 | 4.21 | -1.00 | -19.78 | 38.15 | -34.94 | 121.30 | 0.6330 | 760.8 | 999999 | |
| 3.70 | 6.23 | 2.44 | 4.11 | -22.96 | 37.26 | -35.83 | 125.17 | 0.6616 | 537.9 | 351.0 | |
| 0.45 | -1.00 | 0.29 | -1.00 | -19.49 | 38.22 | -34.87 | 120.93 | 0.6305 | 742.4 | 999999 | |
| 7.59 | -1.00 | 4.87 | -1.00 | -20.26 | 37.99 | -35.11 | 121.89 | 0.6377 | 879.0 | 999999 | |
| 1.72 | -1.00 | 1.09 | -1.00 | -18.63 | 38.31 | -34.78 | 119.72 | 0.6247 | 436.4 | 999999 | |
| 2.08 | -1.00 | 1.34 | -1.00 | -20.91 | 37.70 | -35.40 | 122.62 | 0.6447 | 554.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -22.47 | 37.17 | -35.93 | 124.44 | 0.6597 | 487.0 | 363.3 | |
| 5.96 | -1.00 | 3.81 | -1.00 | -19.33 | 37.95 | -35.14 | 120.52 | 0.6328 | 568.0 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.94 | -21.14 | 37.47 | -35.62 | 122.80 | 0.6485 | 522.0 | 379.7 | |
| 0.54 | -1.00 | 0.35 | -1.00 | -20.81 | 37.52 | -35.57 | 122.37 | 0.6461 | 690.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -22.86 | 36.92 | -36.17 | 124.82 | 0.6647 | 252.0 | 129.9 | |
| 0.00 | 2.89 | 0.00 | 1.89 | -21.46 | 37.18 | -35.91 | 123.06 | 0.6536 | 382.0 | 349.0 | |
| 0.00 | 1.99 | 0.00 | 1.29 | -20.68 | 37.32 | -35.78 | 122.06 | 0.6477 | 522.0 | 417.4 | |
| 0.00 | 2.17 | 0.00 | 1.39 | -18.91 | 37.58 | -35.52 | 119.69 | 0.6349 | 359.0 | 318.2 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -20.94 | 36.92 | -36.17 | 122.18 | 0.6535 | 225.0 | 168.5 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -18.49 | 37.24 | -35.85 | 118.89 | 0.6366 | 597.0 | 581.3 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -23.28 | 35.59 | -37.50 | 124.55 | 0.6813 | -725.0 | -635.0 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -22.89 | 35.64 | -37.46 | 124.06 | 0.6786 | 251.0 | 181.7 | |
| 0.00 | 2.08 | 0.00 | 1.34 | -18.65 | 36.81 | -36.29 | 118.87 | 0.6426 | 639.0 | 399.5 | |
| 1.17 | 3.52 | 0.78 | 2.33 | -21.35 | 36.03 | -37.06 | 122.22 | 0.6658 | -749.5 | -668.7 | |
| 0.00 | 2.17 | 0.00 | 1.40 | -18.84 | 36.68 | -36.41 | 119.07 | 0.6451 | 700.0 | 536.4 | |
| 0.00 | 1.99 | 0.00 | 1.31 | -21.03 | 36.04 | -37.05 | 121.78 | 0.6639 | -776.0 | -640.6 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -21.45 | 35.67 | -37.42 | 122.14 | 0.6702 | -603.0 | -528.5 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -22.29 | 35.20 | -37.89 | 123.01 | 0.6799 | -832.0 | -709.0 | |
| 0.00 | 1.90 | 0.00 | 1.30 | -23.38 | 34.80 | -38.29 | 124.21 | 0.6901 | -777.0 | -654.4 | |
| 0.00 | 1.17 | 0.00 | 0.78 | -21.12 | 35.52 | -37.57 | 121.61 | 0.6701 | -756.0 | -642.2 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -21.48 | 35.42 | -37.68 | 122.04 | 0.6732 | -654.0 | -543.6 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -22.32 | 34.94 | -38.15 | 122.90 | 0.6829 | -841.0 | -689.8 | |
| 3.98 | 9.22 | 2.72 | 6.31 | -23.01 | 34.46 | -38.63 | 123.54 | 0.6917 | -758.9 | -597.8 | |
| 0.81 | 11.93 | 0.54 | 7.94 | -20.70 | 35.11 | -37.98 | 120.80 | 0.6725 | -777.3 | -476.1 | |
| 2.08 | 39.39 | 1.40 | 26.48 | -21.44 | 34.80 | -38.29 | 121.64 | 0.6797 | 296.8 | -508.8 | |
| 3.61 | -42.00 | 2.42 | -42.00 | -21.05 | 34.92 | -38.17 | 121.18 | 0.6764 | -816.5 | 999999 | |
| 0.00 | 4.52 | 0.00 | 3.01 | -20.31 | 34.98 | -38.11 | 120.19 | 0.6720 | -354.0 | -383.9 | |
| 4.52 | -42.00 | 3.04 | -42.00 | -20.92 | 34.51 | -38.59 | 120.77 | 0.6803 | -767.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.30 | -22.42 | 34.02 | -39.07 | 122.51 | 0.6932 | 501.0 | 395.3 | |
| 0.00 | 4.07 | 0.00 | 2.73 | -20.34 | 34.47 | -38.62 | 119.96 | 0.6778 | -116.0 | -173.3 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -22.71 | 33.71 | -39.38 | 122.73 | 0.6980 | 427.0 | 351.0 | |
| 0.00 | 1.72 | 0.00 | 1.17 | -21.70 | 33.97 | -39.13 | 121.52 | 0.6901 | -537.0 | -620.3 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -21.86 | 33.79 | -39.31 | 121.64 | 0.6929 | -619.0 | -648.8 | |
| 0.00 | 2.17 | 0.00 | 1.50 | -22.21 | 33.50 | -39.60 | 121.96 | 0.6978 | -740.0 | -652.6 | |
| 1.99 | 8.13 | 1.38 | 5.66 | -22.24 | 32.89 | -40.21 | 121.68 | 0.7044 | -810.4 | -486.2 | |
| 3.07 | 13.55 | 2.16 | 9.53 | -23.13 | 32.57 | -40.52 | 122.66 | 0.7121 | -972.1 | -641.9 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -20.17 | 33.48 | -39.62 | 119.21 | 0.6881 | -666.0 | -417.9 | |
| 0.54 | 5.60 | 0.39 | 3.98 | -23.62 | 32.08 | -41.01 | 123.04 | 0.7195 | -516.8 | -446.8 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -18.56 | 33.57 | -39.52 | 117.06 | 0.6797 | -598.0 | -504.8 | |
| 3.07 | 5.15 | 2.16 | 3.62 | -22.40 | 32.31 | -40.78 | 121.59 | 0.7113 | -812.6 | -778.1 | |
| 1.45 | -55.00 | 1.03 | -55.00 | -23.32 | 31.97 | -41.12 | 122.60 | 0.7192 | -552.7 | 999999 | |
| 4.07 | 5.33 | 2.88 | 3.77 | -22.79 | 31.95 | -41.14 | 121.91 | 0.7169 | -814.3 | -810.6 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -22.53 | 31.83 | -41.27 | 121.51 | 0.7169 | -379.0 | -450.6 | |
| 5.51 | 47.88 | 3.94 | 34.49 | -23.22 | 31.44 | -41.66 | 122.20 | 0.7242 | -757.1 | -99.4 | |
| 3.07 | -61.00 | 2.20 | -61.00 | -22.92 | 31.19 | -41.90 | 121.70 | 0.7253 | -817.4 | 999999 | |
| 1.45 | 8.85 | 1.02 | 6.24 | -21.42 | 31.70 | -41.40 | 120.00 | 0.7131 | -790.3 | -500.6 | |
| 4.07 | 4.70 | 2.88 | 3.32 | -21.61 | 31.50 | -41.60 | 120.16 | 0.7161 | -573.2 | -497.6 | |
| 2.08 | -61.00 | 1.50 | -61.00 | -23.02 | 30.89 | -42.20 | 121.67 | 0.7288 | -497.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -22.39 | 30.99 | -42.10 | 120.93 | 0.7249 | -609.0 | -486.2 | |
| 1.81 | 2.89 | 1.30 | 2.08 | -22.52 | 30.85 | -42.24 | 121.03 | 0.7269 | -569.2 | -547.6 | |
| 0.00 | 2.26 | 0.00 | 1.63 | -22.39 | 30.41 | -42.68 | 120.65 | 0.7309 | -351.0 | -331.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
