SDO HMI 2011-05-31 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.53 | 45.70 | 20.06 | 50.79 | 21.54 | 131.86 | 60.96 | 294.66 | 0.8961 | -294.4 | -59.5 | |
|
previous
or next observation for the same group /

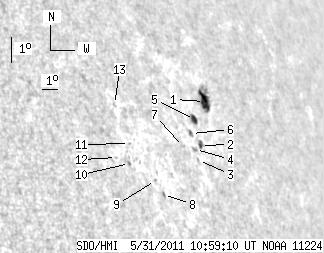

back to the solar disc SDO HMI 2011-05-31 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.11 | 22.31 | 12.93 | 26.05 | 22.20 | 133.19 | 62.29 | 295.08 | 0.9068 | -530.0 | -35.5 | |
| 2.26 | 3.43 | 2.49 | 3.79 | 20.74 | 131.84 | 60.94 | 293.78 | 0.8952 | -380.9 | -296.5 | |
| 0.00 | 0.81 | 0.00 | 0.88 | 20.24 | 131.37 | 60.47 | 293.34 | 0.8910 | -471.0 | -458.2 | |
| 0.00 | 2.44 | 0.00 | 2.65 | 20.60 | 131.41 | 60.51 | 293.73 | 0.8919 | -611.0 | -521.1 | |
| 4.16 | 5.24 | 4.64 | 5.84 | 21.59 | 132.04 | 61.13 | 294.67 | 0.8979 | -372.5 | -281.3 | |
| 0.00 | 2.53 | 0.00 | 2.76 | 21.13 | 131.50 | 60.60 | 294.28 | 0.8934 | -517.0 | -412.1 | |
| 0.00 | 1.54 | 0.00 | 1.63 | 20.69 | 130.68 | 59.78 | 293.99 | 0.8867 | -508.0 | -420.9 | |
| 0.00 | 1.63 | 0.00 | 1.61 | 19.10 | 128.48 | 57.57 | 292.73 | 0.8667 | 360.0 | 406.5 | |
| 0.00 | 0.99 | 0.00 | 0.98 | 19.55 | 128.24 | 57.34 | 293.29 | 0.8657 | 366.0 | 372.1 | |
| 0.00 | 1.35 | 0.00 | 1.29 | 20.09 | 127.00 | 56.10 | 294.22 | 0.8567 | 516.0 | 434.4 | |
| 0.00 | 0.99 | 0.00 | 0.96 | 20.75 | 127.37 | 56.46 | 294.86 | 0.8611 | 455.0 | 357.1 | |
| 0.00 | 0.72 | 0.00 | 0.68 | 20.28 | 126.35 | 55.44 | 294.60 | 0.8517 | 536.0 | 512.6 | |
| 0.00 | 1.72 | 0.00 | 1.67 | 22.03 | 127.23 | 56.33 | 296.34 | 0.8629 | 554.0 | 420.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
