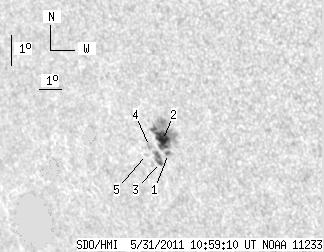

SDO HMI 2011-05-31 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.24 | 64.23 | 13.85 | 46.18 | -17.96 | 26.81 | -44.09 | 114.32 | 0.7287 | 753.2 | 506.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.49 | -18.25 | 27.03 | -43.87 | 114.79 | 0.7272 | 812.0 | 679.2 | |
| 16.80 | 49.41 | 12.08 | 35.43 | -17.84 | 26.90 | -44.00 | 114.19 | 0.7273 | 833.6 | 507.4 | |
| 2.44 | 8.22 | 1.77 | 5.97 | -18.54 | 26.58 | -44.32 | 114.99 | 0.7331 | 605.4 | 618.6 | |
| 0.00 | 2.98 | 0.00 | 2.17 | -18.02 | 26.26 | -44.65 | 114.20 | 0.7349 | 409.0 | 306.7 | |
| 0.00 | 1.54 | 0.00 | 1.12 | -18.28 | 26.04 | -44.86 | 114.45 | 0.7381 | 329.0 | 233.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
