SDO HMI 2011-05-31 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.13 | 212.11 | 30.01 | 171.05 | 16.80 | 20.65 | -49.70 | 67.83 | 0.7900 | -427.1 | -205.0 | |
|
previous
or next observation for the same group /

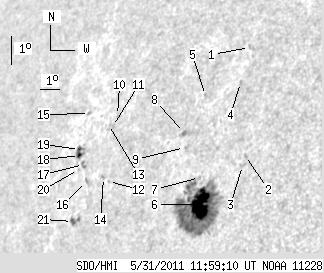

back to the solar disc SDO HMI 2011-05-31 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.32 | 21.54 | 21.91 | -48.44 | 61.66 | 0.7930 | -596.0 | -482.1 | |
| 0.00 | 1.54 | 0.00 | 1.19 | 18.02 | 23.13 | -47.23 | 65.51 | 0.7693 | -502.0 | -423.9 | |
| 0.00 | 2.17 | 0.00 | 1.67 | 17.69 | 23.10 | -47.26 | 65.92 | 0.7686 | -682.0 | -484.2 | |
| 0.00 | 1.90 | 0.00 | 1.52 | 20.39 | 21.97 | -48.39 | 63.02 | 0.7886 | -595.0 | -465.8 | |
| 0.00 | 0.99 | 0.00 | 0.82 | 19.98 | 20.40 | -49.95 | 64.07 | 0.8022 | -180.0 | -253.7 | |
| 32.25 | 174.60 | 25.47 | 138.04 | 16.47 | 21.51 | -48.84 | 67.98 | 0.7810 | -850.4 | -269.9 | |
| 0.00 | 1.54 | 0.00 | 1.23 | 17.33 | 21.16 | -49.19 | 67.03 | 0.7870 | -271.0 | -161.3 | |
| 0.00 | 2.26 | 0.00 | 1.87 | 18.79 | 19.84 | -50.51 | 65.68 | 0.8040 | -517.0 | -350.2 | |
| 0.00 | 0.54 | 0.00 | 0.45 | 18.31 | 20.04 | -50.31 | 66.20 | 0.8007 | -441.0 | -448.8 | |
| 0.00 | 0.99 | 0.00 | 0.90 | 19.39 | 16.02 | -54.34 | 66.12 | 0.8402 | 529.0 | 422.4 | |
| 0.00 | 1.99 | 0.00 | 1.80 | 19.03 | 15.91 | -54.44 | 66.56 | 0.8403 | 475.0 | 411.4 | |
| 0.00 | 1.08 | 0.00 | 0.96 | 17.26 | 16.50 | -53.85 | 68.47 | 0.8311 | 506.0 | 377.7 | |
| 0.00 | 0.63 | 0.00 | 0.58 | 19.10 | 15.66 | -54.70 | 66.55 | 0.8427 | 650.0 | 606.3 | |
| 0.00 | 1.45 | 0.00 | 1.29 | 17.39 | 16.17 | -54.18 | 68.40 | 0.8343 | 558.0 | 482.8 | |
| 0.00 | 1.54 | 0.00 | 1.46 | 19.47 | 14.38 | -55.97 | 66.46 | 0.8543 | 374.0 | 223.6 | |
| 0.00 | 1.72 | 0.00 | 1.57 | 17.27 | 15.28 | -55.07 | 68.76 | 0.8420 | 620.0 | 574.1 | |
| 0.00 | 2.80 | 0.00 | 2.59 | 17.82 | 14.86 | -55.49 | 68.23 | 0.8468 | 548.0 | 573.7 | |
| 1.90 | 7.05 | 1.78 | 6.60 | 18.12 | 14.49 | -55.86 | 67.98 | 0.8506 | 525.6 | 441.2 | |
| 1.63 | -18.00 | 1.53 | -18.00 | 18.31 | 14.40 | -55.95 | 67.78 | 0.8518 | 304.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.84 | 17.67 | 14.65 | -55.70 | 68.46 | 0.8483 | 388.0 | 323.8 | |
| 1.35 | 4.79 | 1.23 | 4.35 | 16.00 | 15.05 | -55.30 | 70.30 | 0.8415 | -556.5 | -486.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
