SDO HMI 2011-05-31 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.23 | 70.27 | 15.86 | 50.06 | -17.87 | 26.77 | -43.58 | 114.39 | 0.7227 | 743.5 | 489.1 | |
|
previous
or next observation for the same group /

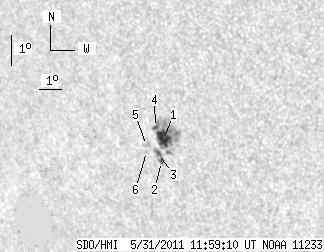

back to the solar disc SDO HMI 2011-05-31 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.17 | 57.18 | 11.52 | 40.62 | -17.81 | 26.89 | -43.46 | 114.36 | 0.7212 | 859.3 | 503.4 | |
| 1.90 | 8.40 | 1.36 | 6.04 | -18.54 | 26.58 | -43.78 | 115.20 | 0.7273 | 604.0 | 537.4 | |
| 2.17 | -2.00 | 1.56 | -2.00 | -18.28 | 26.52 | -43.83 | 114.85 | 0.7269 | 663.2 | 999999 | |
| 1.99 | -1.00 | 1.42 | -1.00 | -17.46 | 26.65 | -43.70 | 113.80 | 0.7227 | 526.5 | 999999 | |
| 0.00 | 3.34 | 0.00 | 2.42 | -18.03 | 26.07 | -44.28 | 114.33 | 0.7309 | 427.0 | 351.7 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -18.22 | 26.01 | -44.34 | 114.56 | 0.7323 | 350.0 | 273.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
