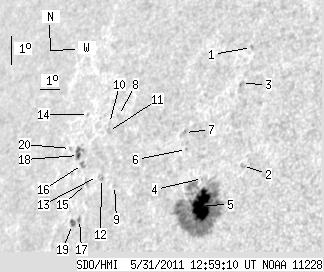

SDO HMI 2011-05-31 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.03 | 217.13 | 29.22 | 173.51 | 16.78 | 20.54 | -49.26 | 67.71 | 0.7855 | -452.9 | -183.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.37 | 21.56 | 21.95 | -47.85 | 61.41 | 0.7876 | -616.0 | -502.5 | |
| 0.00 | 2.44 | 0.00 | 1.86 | 17.72 | 23.01 | -46.79 | 65.73 | 0.7639 | -536.0 | -480.2 | |
| 0.00 | 2.26 | 0.00 | 1.79 | 20.38 | 21.96 | -47.84 | 62.83 | 0.7833 | -647.0 | -485.3 | |
| 0.00 | 0.72 | 0.00 | 0.57 | 17.32 | 21.25 | -48.55 | 66.83 | 0.7806 | -301.0 | -254.0 | |
| 34.95 | 178.01 | 27.31 | 139.20 | 16.46 | 21.50 | -48.30 | 67.82 | 0.7755 | -849.7 | -266.1 | |
| 0.00 | 0.99 | 0.00 | 0.81 | 18.27 | 20.11 | -49.69 | 66.05 | 0.7946 | -376.0 | -348.2 | |
| 0.00 | 2.17 | 0.00 | 1.78 | 18.82 | 19.79 | -50.01 | 65.49 | 0.7993 | -397.0 | -290.2 | |
| 0.00 | 1.35 | 0.00 | 1.21 | 19.41 | 16.07 | -53.73 | 65.92 | 0.8350 | 263.0 | 368.4 | |
| 0.00 | 1.45 | 0.00 | 1.25 | 17.15 | 16.86 | -52.94 | 68.36 | 0.8225 | 275.0 | 278.8 | |
| 0.00 | 0.90 | 0.00 | 0.81 | 19.16 | 15.70 | -54.11 | 66.32 | 0.8377 | 624.0 | 575.6 | |
| 0.00 | 1.45 | 0.00 | 1.30 | 18.90 | 15.77 | -54.04 | 66.60 | 0.8365 | 653.0 | 555.7 | |
| 0.00 | 1.99 | 0.00 | 1.76 | 17.38 | 16.07 | -53.73 | 68.29 | 0.8303 | 657.0 | 504.8 | |
| 0.00 | 0.72 | 0.00 | 0.64 | 17.45 | 15.82 | -53.98 | 68.28 | 0.8327 | 511.0 | 507.6 | |
| 0.00 | 1.08 | 0.00 | 1.01 | 19.46 | 14.36 | -55.44 | 66.33 | 0.8498 | 343.0 | 245.4 | |
| 0.00 | 2.53 | 0.00 | 2.27 | 17.23 | 15.31 | -54.49 | 68.66 | 0.8368 | 639.0 | 521.9 | |
| 0.00 | 3.16 | 0.00 | 2.89 | 17.85 | 14.82 | -54.99 | 68.08 | 0.8425 | 645.0 | 590.5 | |
| 0.00 | 2.53 | 0.00 | 2.26 | 16.08 | 15.41 | -54.39 | 69.99 | 0.8335 | -464.0 | -493.1 | |
| 1.72 | 7.14 | 1.59 | 6.60 | 18.14 | 14.45 | -55.35 | 67.83 | 0.8462 | 579.8 | 422.6 | |
| 0.36 | 2.89 | 0.32 | 2.60 | 15.93 | 15.09 | -54.71 | 70.24 | 0.8361 | -564.8 | -461.2 | |
| 0.00 | 1.63 | 0.00 | 1.53 | 18.37 | 13.88 | -55.92 | 67.70 | 0.8516 | 371.0 | 281.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
