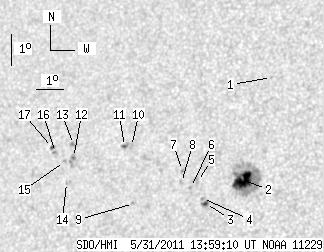

SDO HMI 2011-05-31 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.12 | 103.32 | 13.00 | 60.90 | 16.13 | 40.83 | -28.42 | 57.58 | 0.5427 | -358.8 | -189.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.37 | 19.25 | 42.77 | -26.48 | 50.99 | 0.5438 | 620.0 | 537.3 | |
| 16.89 | 70.44 | 9.81 | 40.88 | 15.95 | 42.30 | -26.95 | 56.69 | 0.5234 | -1078.0 | -421.1 | |
| 1.90 | 3.07 | 1.11 | 1.80 | 15.23 | 41.05 | -28.20 | 58.98 | 0.5340 | -867.8 | -656.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 15.39 | 40.92 | -28.33 | 58.83 | 0.5368 | -715.0 | -628.3 | |
| 0.00 | 2.08 | 0.00 | 1.22 | 15.93 | 40.66 | -28.59 | 58.16 | 0.5438 | -666.0 | -566.5 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 15.74 | 40.44 | -28.81 | 58.65 | 0.5453 | -810.0 | -623.0 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 16.29 | 40.06 | -29.19 | 58.08 | 0.5537 | -647.0 | -444.5 | |
| 0.00 | 1.99 | 0.00 | 1.18 | 15.90 | 40.09 | -29.16 | 58.67 | 0.5508 | -632.0 | -488.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 15.25 | 38.44 | -30.81 | 60.98 | 0.5673 | 571.0 | 572.3 | |
| 0.00 | 2.17 | 0.00 | 1.32 | 17.07 | 38.05 | -31.20 | 58.42 | 0.5835 | 630.0 | 648.5 | |
| 1.08 | 3.25 | 0.66 | 1.98 | 17.07 | 37.79 | -31.46 | 58.61 | 0.5867 | 833.4 | 716.5 | |
| 0.81 | 6.14 | 0.51 | 3.82 | 16.73 | 35.93 | -33.32 | 60.42 | 0.6071 | 876.7 | 651.9 | |
| 0.00 | 2.53 | 0.00 | 1.58 | 17.15 | 35.85 | -33.40 | 59.86 | 0.6106 | 779.0 | 611.3 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 15.94 | 35.82 | -33.43 | 61.70 | 0.6039 | 676.0 | 565.1 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 16.61 | 35.61 | -33.64 | 60.82 | 0.6102 | 686.0 | 574.4 | |
| 0.00 | 1.81 | 0.00 | 1.13 | 16.90 | 35.21 | -34.04 | 60.65 | 0.6168 | 617.0 | 484.9 | |
| 1.44 | 1.81 | 0.91 | 1.14 | 17.06 | 35.06 | -34.19 | 60.50 | 0.6195 | 509.5 | 601.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
