SDO HMI 2011-05-31 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.35 | 106.11 | 16.54 | 62.17 | 16.16 | 40.96 | -27.74 | 56.96 | 0.5346 | -326.4 | -136.7 | |
|
previous
or next observation for the same group /

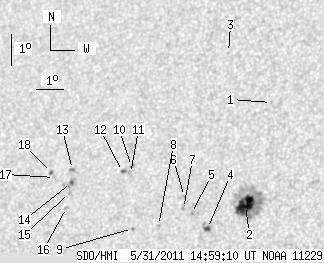

back to the solar disc SDO HMI 2011-05-31 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.58 | 19.27 | 42.76 | -25.94 | 50.42 | 0.5379 | 577.0 | 503.2 | |
| 22.31 | 72.24 | 12.89 | 41.72 | 15.98 | 42.35 | -26.35 | 56.10 | 0.5161 | -1044.5 | -363.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 20.91 | 40.89 | -27.81 | 49.82 | 0.5725 | 640.0 | 467.4 | |
| 2.26 | 5.78 | 1.31 | 3.36 | 15.26 | 41.11 | -27.59 | 58.43 | 0.5265 | -897.1 | -562.7 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 15.74 | 40.46 | -28.24 | 58.18 | 0.5380 | -790.0 | -633.1 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 16.28 | 40.13 | -28.57 | 57.58 | 0.5459 | -609.0 | -468.9 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 15.90 | 40.15 | -28.55 | 58.18 | 0.5430 | -684.0 | -510.7 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 15.36 | 39.33 | -29.37 | 59.72 | 0.5497 | -656.0 | -439.3 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 15.28 | 38.40 | -30.30 | 60.57 | 0.5609 | 700.0 | 518.8 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 17.25 | 38.02 | -30.68 | 57.75 | 0.5783 | 821.0 | 682.1 | |
| 0.00 | 2.26 | 0.00 | 1.37 | 17.03 | 38.03 | -30.67 | 58.09 | 0.5768 | 397.0 | 491.2 | |
| 1.17 | 1.99 | 0.71 | 1.21 | 17.09 | 37.72 | -30.98 | 58.22 | 0.5810 | 773.5 | 869.4 | |
| 0.00 | 1.81 | 0.00 | 1.12 | 17.17 | 35.82 | -32.88 | 59.46 | 0.6043 | 744.0 | 661.3 | |
| 1.17 | 5.78 | 0.73 | 3.58 | 16.76 | 35.87 | -32.83 | 60.06 | 0.6013 | 899.2 | 719.9 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 16.44 | 35.85 | -32.84 | 60.55 | 0.5996 | 689.0 | 533.2 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 15.96 | 35.83 | -32.87 | 61.29 | 0.5971 | 779.0 | 617.8 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 16.92 | 35.19 | -33.51 | 60.27 | 0.6105 | 754.0 | 544.4 | |
| 1.44 | 1.54 | 0.90 | 0.96 | 17.08 | 35.04 | -33.66 | 60.12 | 0.6132 | 476.7 | 377.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
