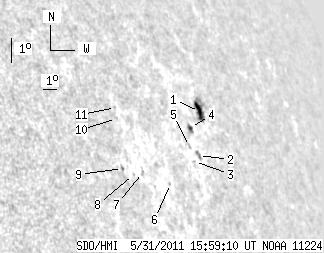

SDO HMI 2011-05-31 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.03 | 33.59 | 12.71 | 40.77 | 21.61 | 131.67 | 63.53 | 294.20 | 0.9134 | -221.8 | 31.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.04 | 16.80 | 10.28 | 21.63 | 22.20 | 133.11 | 64.97 | 294.54 | 0.9238 | -457.7 | 126.7 | |
| 0.00 | 3.52 | 0.00 | 4.26 | 20.74 | 131.83 | 63.68 | 293.22 | 0.9139 | -368.0 | -252.4 | |
| 0.00 | 0.63 | 0.00 | 0.75 | 20.54 | 131.38 | 63.24 | 293.09 | 0.9107 | -571.0 | -527.6 | |
| 1.99 | 4.15 | 2.43 | 5.07 | 21.66 | 131.96 | 63.82 | 294.18 | 0.9160 | -286.0 | -299.0 | |
| 0.00 | 1.63 | 0.00 | 1.94 | 21.03 | 131.39 | 63.24 | 293.62 | 0.9114 | -489.0 | -312.8 | |
| 0.00 | 0.45 | 0.00 | 0.50 | 19.80 | 129.18 | 61.04 | 292.72 | 0.8943 | 76.0 | 29.2 | |
| 0.00 | 1.72 | 0.00 | 1.80 | 20.13 | 127.56 | 59.41 | 293.45 | 0.8829 | 309.0 | 236.3 | |
| 0.00 | 0.99 | 0.00 | 1.02 | 20.06 | 126.94 | 58.79 | 293.51 | 0.8781 | 429.0 | 420.5 | |
| 0.00 | 2.17 | 0.00 | 2.19 | 20.25 | 126.37 | 58.22 | 293.85 | 0.8740 | 502.0 | 400.1 | |
| 0.00 | 0.81 | 0.00 | 0.85 | 21.89 | 127.03 | 58.89 | 295.52 | 0.8822 | 337.0 | 395.8 | |
| 0.00 | 0.72 | 0.00 | 0.76 | 22.26 | 127.22 | 59.07 | 295.87 | 0.8843 | 359.0 | 292.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
