SDO HMI 2011-05-31 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.27 | 197.74 | 31.23 | 155.01 | -20.12 | 20.08 | -48.07 | 115.65 | 0.7770 | 336.2 | 236.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

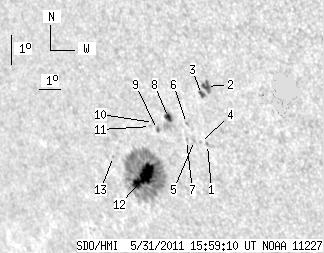

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.14 | -19.45 | 23.03 | -45.12 | 115.88 | 0.7449 | -646.0 | -517.1 | |
| 4.79 | 7.68 | 3.47 | 5.56 | -17.60 | 23.61 | -44.54 | 113.69 | 0.7324 | -685.8 | -621.8 | |
| 3.16 | 3.88 | 2.31 | 2.83 | -17.86 | 23.30 | -44.85 | 113.91 | 0.7365 | -589.4 | -477.2 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -19.39 | 22.73 | -45.41 | 115.68 | 0.7477 | -513.0 | -377.8 | |
| 0.00 | 1.17 | 0.00 | 0.88 | -19.32 | 22.48 | -45.67 | 115.50 | 0.7502 | -373.0 | -353.2 | |
| 0.00 | 1.08 | 0.00 | 0.81 | -18.77 | 22.30 | -45.84 | 114.74 | 0.7502 | -564.0 | -491.0 | |
| 0.00 | 1.17 | 0.00 | 0.88 | -19.32 | 22.11 | -46.04 | 115.37 | 0.7540 | -588.0 | -430.5 | |
| 3.97 | 13.45 | 3.00 | 10.19 | -18.57 | 21.54 | -46.61 | 114.22 | 0.7576 | -660.4 | -184.0 | |
| 0.36 | 1.72 | 0.28 | 1.32 | -18.95 | 20.88 | -47.27 | 114.47 | 0.7656 | 596.2 | 453.1 | |
| 0.00 | 1.17 | 0.00 | 0.90 | -18.73 | 20.77 | -47.37 | 114.15 | 0.7660 | 176.0 | 166.8 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -18.85 | 20.58 | -47.56 | 114.25 | 0.7683 | 525.0 | 362.4 | |
| 27.99 | 162.00 | 22.17 | 128.26 | -20.46 | 19.65 | -48.50 | 115.93 | 0.7825 | 910.5 | 311.5 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -19.80 | 18.39 | -49.76 | 114.72 | 0.7929 | 281.0 | 275.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
