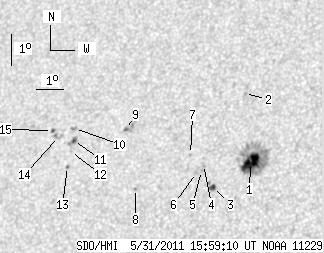

SDO HMI 2011-05-31 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.39 | 100.31 | 13.61 | 58.48 | 16.18 | 40.94 | -27.21 | 56.44 | 0.5281 | -381.1 | -194.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.80 | 68.99 | 9.65 | 39.64 | 16.04 | 42.39 | -25.76 | 55.43 | 0.5092 | -1107.9 | -415.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 18.25 | 41.84 | -26.30 | 52.37 | 0.5335 | 616.0 | 478.0 | |
| 2.44 | 4.97 | 1.41 | 2.88 | 15.26 | 41.16 | -26.99 | 57.91 | 0.5188 | -858.0 | -645.4 | |
| 0.00 | 2.08 | 0.00 | 1.21 | 15.99 | 40.73 | -27.41 | 57.06 | 0.5294 | -726.0 | -613.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 15.80 | 40.69 | -27.46 | 57.41 | 0.5286 | -817.0 | -695.9 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 15.73 | 40.52 | -27.62 | 57.66 | 0.5303 | -777.0 | -620.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 16.31 | 40.22 | -27.93 | 56.98 | 0.5381 | -580.0 | -430.2 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 15.24 | 38.40 | -29.75 | 60.21 | 0.5537 | 679.0 | 510.2 | |
| 1.35 | 5.42 | 0.82 | 3.27 | 17.12 | 37.72 | -30.43 | 57.75 | 0.5745 | 827.7 | 776.7 | |
| 0.00 | 2.71 | 0.00 | 1.67 | 17.17 | 35.80 | -32.34 | 59.10 | 0.5979 | 750.0 | 623.3 | |
| 1.72 | 3.61 | 1.06 | 2.22 | 16.79 | 35.84 | -32.31 | 59.65 | 0.5951 | 870.7 | 757.7 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 16.44 | 35.79 | -32.35 | 60.22 | 0.5935 | 731.0 | 535.2 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 15.96 | 35.77 | -32.38 | 60.97 | 0.5910 | 687.0 | 596.4 | |
| 0.00 | 3.25 | 0.00 | 2.01 | 16.92 | 35.25 | -32.90 | 59.86 | 0.6031 | 419.0 | 543.9 | |
| 1.08 | 1.54 | 0.67 | 0.96 | 17.11 | 34.98 | -33.16 | 59.75 | 0.6074 | 477.2 | 507.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
