SDO HMI 2011-05-31 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.93 | 28.41 | 15.30 | 35.54 | 21.71 | 131.90 | 64.31 | 294.16 | 0.9187 | -190.8 | 49.3 | |
|
previous
or next observation for the same group /

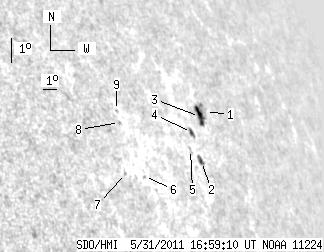

back to the solar disc SDO HMI 2011-05-31 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.69 | 22.35 | 133.66 | 66.07 | 294.50 | 0.9306 | 405.0 | 325.1 | |
| 2.08 | 4.24 | 2.57 | 5.24 | 20.68 | 131.91 | 64.32 | 293.04 | 0.9179 | -253.3 | -265.0 | |
| 7.86 | 13.72 | 10.26 | 17.99 | 22.18 | 133.01 | 65.42 | 294.43 | 0.9265 | -429.9 | 60.5 | |
| 1.99 | 3.97 | 2.47 | 4.95 | 21.63 | 131.92 | 64.33 | 294.06 | 0.9192 | -291.5 | -200.9 | |
| 0.00 | 0.90 | 0.00 | 1.10 | 21.07 | 131.39 | 63.79 | 293.55 | 0.9150 | -341.0 | -278.4 | |
| 0.00 | 1.08 | 0.00 | 1.15 | 20.14 | 127.53 | 59.94 | 293.33 | 0.8868 | 340.0 | 267.3 | |
| 0.00 | 1.26 | 0.00 | 1.30 | 20.22 | 126.36 | 58.77 | 293.69 | 0.8782 | 618.0 | 424.6 | |
| 0.00 | 0.99 | 0.00 | 1.06 | 21.90 | 127.07 | 59.48 | 295.38 | 0.8866 | 407.0 | 359.8 | |
| 0.00 | 0.99 | 0.00 | 1.06 | 22.30 | 127.15 | 59.56 | 295.80 | 0.8879 | 288.0 | 238.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
