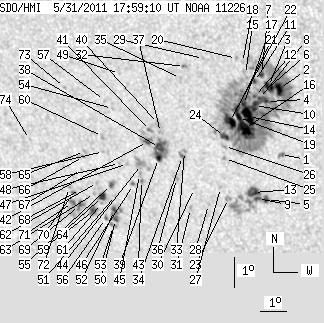

SDO HMI 2011-05-31 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.62 | 647.76 | 75.79 | 393.86 | -20.71 | 37.08 | -29.96 | 126.33 | 0.5811 | 197.3 | 236.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.25 | 0.00 | 1.94 | -21.45 | 39.23 | -27.80 | 129.25 | 0.5628 | 815.0 | 691.5 | |
| 7.86 | 430.43 | 4.62 | 256.81 | -19.32 | 39.61 | -27.42 | 126.33 | 0.5416 | 1360.7 | 465.3 | |
| 6.41 | -2.00 | 3.78 | -2.00 | -19.25 | 39.22 | -27.81 | 125.88 | 0.5457 | 1119.0 | 999999 | |
| 1.08 | -2.00 | 0.64 | -2.00 | -19.73 | 39.06 | -27.98 | 126.48 | 0.5513 | 996.9 | 999999 | |
| 2.98 | 47.22 | 1.81 | 28.94 | -22.91 | 38.39 | -28.65 | 130.61 | 0.5839 | 856.3 | 322.0 | |
| 1.54 | -2.00 | 0.91 | -2.00 | -19.41 | 39.01 | -28.02 | 125.94 | 0.5495 | 1010.7 | 999999 | |
| 2.17 | -2.00 | 1.28 | -2.00 | -18.86 | 39.04 | -28.00 | 125.10 | 0.5451 | 970.3 | 999999 | |
| 1.54 | -2.00 | 0.91 | -2.00 | -19.63 | 38.82 | -28.21 | 126.12 | 0.5534 | 1080.1 | 999999 | |
| 2.44 | -5.00 | 1.49 | -5.00 | -22.88 | 38.06 | -28.98 | 130.26 | 0.5872 | 819.4 | 999999 | |
| 4.61 | -2.00 | 2.74 | -2.00 | -19.86 | 38.60 | -28.44 | 126.27 | 0.5577 | 1148.4 | 999999 | |
| 1.90 | -2.00 | 1.12 | -2.00 | -19.09 | 38.74 | -28.29 | 125.20 | 0.5503 | 803.5 | 999999 | |
| 1.54 | -2.00 | 0.91 | -2.00 | -19.57 | 38.65 | -28.38 | 125.87 | 0.5549 | 1034.4 | 999999 | |
| 9.03 | -5.00 | 5.51 | -5.00 | -22.68 | 37.95 | -29.08 | 129.89 | 0.5867 | 889.2 | 999999 | |
| 13.09 | -2.00 | 7.84 | -2.00 | -20.21 | 38.30 | -28.73 | 126.56 | 0.5638 | 1289.1 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.20 | -18.86 | 38.46 | -28.58 | 124.59 | 0.5521 | 244.0 | 240.6 | |
| 10.02 | -2.00 | 6.03 | -2.00 | -20.60 | 38.08 | -28.96 | 126.95 | 0.5693 | 1131.2 | 999999 | |
| 1.54 | -2.00 | 0.92 | -2.00 | -19.82 | 38.20 | -28.84 | 125.87 | 0.5621 | 1001.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.48 | 38.42 | -28.62 | 123.95 | 0.5498 | 658.0 | 509.2 | |
| 3.16 | -2.00 | 1.90 | -2.00 | -20.24 | 37.93 | -29.11 | 126.28 | 0.5684 | 936.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -18.35 | 38.22 | -28.82 | 123.58 | 0.5512 | 488.0 | 343.0 | |
| 1.17 | -2.00 | 0.71 | -2.00 | -20.05 | 37.86 | -29.18 | 125.93 | 0.5678 | 769.1 | 999999 | |
| 10.56 | -2.00 | 6.38 | -2.00 | -20.37 | 37.57 | -29.47 | 126.17 | 0.5735 | 739.3 | 999999 | |
| 0.00 | 3.43 | 0.00 | 2.12 | -22.87 | 36.96 | -30.08 | 129.31 | 0.5990 | 536.0 | 346.7 | |
| 4.15 | -2.00 | 2.52 | -2.00 | -20.85 | 37.28 | -29.76 | 126.65 | 0.5804 | 612.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -21.57 | 37.12 | -29.92 | 127.57 | 0.5875 | 718.0 | 528.9 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -21.18 | 37.20 | -29.83 | 127.07 | 0.5836 | 479.0 | 378.8 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -22.51 | 36.74 | -30.30 | 128.62 | 0.5987 | 593.0 | 438.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -23.07 | 36.14 | -30.90 | 128.91 | 0.6093 | -679.0 | -465.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -18.34 | 37.01 | -30.03 | 122.60 | 0.5660 | 604.0 | 421.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -22.54 | 35.74 | -31.30 | 127.84 | 0.6099 | 494.0 | 408.2 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -23.19 | 35.41 | -31.63 | 128.50 | 0.6181 | -901.0 | -717.7 | |
| 0.00 | 2.35 | 0.00 | 1.42 | -18.59 | 36.25 | -30.79 | 122.41 | 0.5768 | 876.0 | 638.7 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -21.33 | 35.65 | -31.39 | 126.05 | 0.6023 | -868.0 | -682.9 | |
| 0.63 | 3.25 | 0.39 | 2.02 | -21.49 | 35.53 | -31.50 | 126.20 | 0.6047 | -858.4 | -665.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -18.98 | 36.02 | -31.01 | 122.83 | 0.5820 | 669.0 | 425.7 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -22.21 | 35.13 | -31.91 | 126.90 | 0.6143 | -880.0 | -745.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -20.71 | 34.88 | -32.16 | 124.57 | 0.6069 | -732.0 | -650.5 | |
| 5.78 | 27.45 | 3.61 | 17.16 | -21.19 | 34.72 | -32.32 | 125.16 | 0.6119 | -890.2 | -578.4 | |
| 1.90 | -38.00 | 1.19 | -38.00 | -21.55 | 34.59 | -32.44 | 125.57 | 0.6157 | 391.3 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.85 | -20.42 | 34.87 | -32.17 | 124.14 | 0.6050 | -169.0 | -204.8 | |
| 0.00 | 2.26 | 0.00 | 1.41 | -20.64 | 34.51 | -32.53 | 124.20 | 0.6107 | -707.0 | -588.0 | |
| 3.25 | 11.56 | 2.04 | 7.25 | -21.00 | 34.31 | -32.73 | 124.57 | 0.6153 | -672.5 | -288.9 | |
| 0.36 | 1.90 | 0.23 | 1.21 | -22.26 | 33.74 | -33.29 | 125.96 | 0.6299 | -760.5 | -507.9 | |
| 0.00 | 11.65 | 0.00 | 7.37 | -21.74 | 33.88 | -33.16 | 125.33 | 0.6249 | -846.0 | -744.7 | |
| 0.00 | 1.63 | 0.00 | 1.03 | -22.07 | 33.72 | -33.32 | 125.67 | 0.6289 | -746.0 | -710.0 | |
| 1.17 | 1.63 | 0.75 | 1.04 | -22.39 | 33.39 | -33.65 | 125.89 | 0.6346 | -641.8 | -646.6 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -21.71 | 33.34 | -33.70 | 124.90 | 0.6307 | -602.0 | -539.4 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -21.70 | 33.03 | -34.01 | 124.68 | 0.6342 | -591.0 | -508.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -18.80 | 33.74 | -33.29 | 120.96 | 0.6082 | -656.0 | -491.7 | |
| 2.71 | 13.00 | 1.77 | 8.47 | -23.54 | 32.34 | -34.70 | 126.72 | 0.6533 | -744.8 | -728.1 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -22.75 | 32.58 | -34.46 | 125.81 | 0.6458 | -805.0 | -649.6 | |
| 2.80 | -50.00 | 1.82 | -50.00 | -23.24 | 32.39 | -34.65 | 126.36 | 0.6509 | -873.9 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.89 | -23.73 | 32.20 | -34.84 | 126.89 | 0.6561 | -555.0 | -480.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -19.92 | 33.21 | -33.83 | 122.26 | 0.6212 | -555.0 | -530.5 | |
| 2.35 | 4.42 | 1.52 | 2.86 | -22.39 | 32.52 | -34.52 | 125.28 | 0.6441 | -857.8 | -725.3 | |
| 1.26 | 1.99 | 0.83 | 1.30 | -23.50 | 31.95 | -35.09 | 126.41 | 0.6573 | -481.1 | -479.4 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -19.66 | 32.96 | -34.08 | 121.72 | 0.6225 | -556.0 | -380.2 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -21.31 | 32.50 | -34.54 | 123.77 | 0.6377 | -586.0 | -515.4 | |
| 4.70 | 5.96 | 3.06 | 3.88 | -22.78 | 32.04 | -34.99 | 125.50 | 0.6517 | -922.9 | -683.2 | |
| 0.00 | 2.26 | 0.00 | 1.44 | -20.82 | 32.59 | -34.45 | 123.14 | 0.6337 | -776.0 | -598.6 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -23.01 | 31.94 | -35.10 | 125.73 | 0.6543 | -732.0 | -602.1 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -22.32 | 31.98 | -35.06 | 124.82 | 0.6496 | -814.0 | -657.7 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -22.68 | 31.75 | -35.29 | 125.16 | 0.6543 | -731.0 | -620.8 | |
| 3.97 | 7.04 | 2.61 | 4.63 | -23.23 | 31.54 | -35.50 | 125.78 | 0.6600 | -756.8 | -597.5 | |
| 0.00 | 1.81 | 0.00 | 1.17 | -21.30 | 31.74 | -35.29 | 123.27 | 0.6461 | -704.0 | -544.7 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -21.47 | 31.66 | -35.38 | 123.44 | 0.6480 | -507.0 | -634.7 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -21.89 | 31.46 | -35.58 | 123.90 | 0.6527 | -417.0 | -365.3 | |
| 0.00 | 0.54 | 0.00 | 0.36 | -22.54 | 31.22 | -35.81 | 124.64 | 0.6592 | -723.0 | -640.7 | |
| 3.52 | 17.07 | 2.33 | 11.32 | -23.07 | 31.02 | -36.02 | 125.22 | 0.6645 | -706.1 | -99.2 | |
| 1.08 | 2.08 | 0.72 | 1.37 | -22.64 | 30.91 | -36.13 | 124.57 | 0.6631 | -652.3 | -523.3 | |
| 1.35 | -69.00 | 0.90 | -69.00 | -22.97 | 30.77 | -36.27 | 124.92 | 0.6666 | -629.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -22.47 | 30.80 | -36.24 | 124.28 | 0.6634 | -556.0 | -500.6 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -19.23 | 31.49 | -35.55 | 120.18 | 0.6372 | -645.0 | -473.3 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -20.90 | 29.63 | -37.41 | 121.43 | 0.6674 | -466.0 | -378.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
