SDO HMI 2011-05-31 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.15 | 246.47 | 32.82 | 188.83 | 16.95 | 19.99 | -47.04 | 66.76 | 0.7631 | -383.9 | -133.8 | |
|
previous
or next observation for the same group /

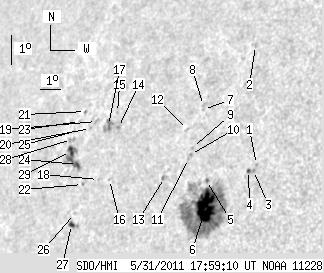

back to the solar disc SDO HMI 2011-05-31 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.72 | 17.75 | 23.34 | -43.70 | 64.48 | 0.7314 | -624.0 | -492.0 | |
| 0.00 | 1.54 | 0.00 | 1.17 | 21.63 | 21.93 | -45.11 | 60.19 | 0.7613 | -568.0 | -437.5 | |
| 0.00 | 0.99 | 0.00 | 0.72 | 17.56 | 23.26 | -43.77 | 64.76 | 0.7314 | -718.0 | -541.2 | |
| 1.35 | 1.72 | 0.98 | 1.25 | 17.57 | 23.04 | -44.00 | 64.85 | 0.7338 | -658.9 | -797.2 | |
| 0.00 | 1.81 | 0.00 | 1.35 | 17.26 | 21.24 | -45.80 | 65.94 | 0.7520 | -454.0 | -364.2 | |
| 34.85 | 180.41 | 25.86 | 134.03 | 16.40 | 21.46 | -45.57 | 66.97 | 0.7467 | -921.0 | -293.6 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 19.56 | 20.30 | -46.74 | 63.42 | 0.7696 | -478.0 | -337.2 | |
| 0.00 | 2.71 | 0.00 | 2.10 | 19.69 | 20.25 | -46.79 | 63.28 | 0.7705 | -444.0 | -372.4 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 18.33 | 20.23 | -46.81 | 64.97 | 0.7661 | -423.0 | -334.8 | |
| 0.00 | 1.35 | 0.00 | 1.04 | 18.11 | 20.21 | -46.82 | 65.26 | 0.7654 | -582.0 | -410.0 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 17.98 | 20.17 | -46.87 | 65.44 | 0.7655 | -464.0 | -359.3 | |
| 0.00 | 1.90 | 0.00 | 1.47 | 18.92 | 19.78 | -47.26 | 64.41 | 0.7726 | -417.0 | -332.0 | |
| 0.00 | 2.80 | 0.00 | 2.18 | 17.38 | 19.24 | -47.80 | 66.51 | 0.7731 | 449.0 | 413.2 | |
| 0.00 | 1.44 | 0.00 | 1.20 | 19.02 | 16.34 | -50.70 | 65.47 | 0.8063 | 249.0 | 188.9 | |
| 0.00 | 0.99 | 0.00 | 0.83 | 19.51 | 16.08 | -50.96 | 64.97 | 0.8101 | 508.0 | 425.9 | |
| 0.00 | 0.81 | 0.00 | 0.67 | 17.35 | 16.56 | -50.48 | 67.42 | 0.7996 | 555.0 | 490.2 | |
| 0.00 | 7.31 | 0.00 | 6.17 | 19.09 | 15.80 | -51.24 | 65.56 | 0.8116 | 715.0 | 657.0 | |
| 0.00 | 1.08 | 0.00 | 0.90 | 17.35 | 16.00 | -51.04 | 67.58 | 0.8050 | 579.0 | 491.0 | |
| 0.00 | 2.08 | 0.00 | 1.78 | 19.23 | 15.11 | -51.92 | 65.61 | 0.8183 | 616.0 | 557.1 | |
| 0.00 | 1.08 | 0.00 | 0.93 | 19.01 | 14.90 | -52.14 | 65.94 | 0.8197 | 517.0 | 475.4 | |
| 0.00 | 1.08 | 0.00 | 0.95 | 19.56 | 14.38 | -52.66 | 65.44 | 0.8258 | 297.0 | 203.9 | |
| 0.00 | 1.17 | 0.00 | 0.99 | 17.20 | 15.24 | -51.80 | 67.98 | 0.8119 | 699.0 | 565.2 | |
| 0.00 | 0.90 | 0.00 | 0.79 | 19.24 | 14.21 | -52.83 | 65.87 | 0.8265 | 271.0 | 192.4 | |
| 0.90 | 19.14 | 0.77 | 16.57 | 17.85 | 14.71 | -52.32 | 67.36 | 0.8184 | 816.0 | 541.3 | |
| 0.00 | 1.26 | 0.00 | 1.11 | 18.92 | 14.09 | -52.95 | 66.28 | 0.8268 | 262.0 | 265.2 | |
| 0.00 | 1.17 | 0.00 | 0.99 | 16.28 | 15.18 | -51.86 | 69.11 | 0.8102 | -205.0 | -170.5 | |
| 1.99 | 4.61 | 1.67 | 3.86 | 15.93 | 15.16 | -51.88 | 69.54 | 0.8097 | -593.0 | -538.2 | |
| 0.00 | 3.16 | 0.00 | 2.77 | 18.66 | 14.04 | -52.99 | 66.59 | 0.8266 | 484.0 | 398.3 | |
| 4.06 | -24.00 | 3.54 | -24.00 | 18.27 | 14.16 | -52.88 | 67.02 | 0.8246 | 618.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
