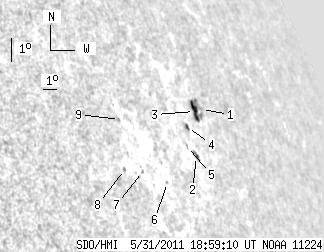

SDO HMI 2011-05-31 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.13 | 28.79 | 11.06 | 37.65 | 21.65 | 131.97 | 65.49 | 293.87 | 0.9258 | -214.9 | 34.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 2.02 | 22.27 | 133.63 | 67.15 | 294.22 | 0.9366 | 260.0 | 258.5 | |
| 0.00 | 4.24 | 0.00 | 5.46 | 20.70 | 131.81 | 65.33 | 292.87 | 0.9242 | -366.0 | -232.4 | |
| 8.13 | 15.26 | 11.06 | 20.90 | 22.19 | 132.97 | 66.49 | 294.26 | 0.9328 | -425.5 | 135.3 | |
| 0.00 | 2.17 | 0.00 | 2.82 | 21.65 | 131.91 | 65.43 | 293.87 | 0.9259 | -403.0 | -273.6 | |
| 0.00 | 1.17 | 0.00 | 1.49 | 21.02 | 131.37 | 64.89 | 293.29 | 0.9219 | -329.0 | -256.0 | |
| 0.00 | 1.17 | 0.00 | 1.35 | 19.82 | 128.98 | 62.49 | 292.45 | 0.9046 | 145.0 | 90.5 | |
| 0.00 | 0.99 | 0.00 | 1.09 | 20.15 | 127.48 | 61.00 | 293.12 | 0.8946 | 289.0 | 213.0 | |
| 0.00 | 1.54 | 0.00 | 1.63 | 20.20 | 126.33 | 59.84 | 293.42 | 0.8862 | 564.0 | 469.6 | |
| 0.00 | 0.81 | 0.00 | 0.89 | 21.85 | 127.11 | 60.63 | 295.06 | 0.8947 | 450.0 | 392.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
