SDO HMI 2011-05-31 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.68 | 11.21 | 6.33 | 12.51 | 20.49 | 3.96 | -61.42 | 66.60 | 0.8976 | 95.0 | 119.7 | |
|
previous
or next observation for the same group /

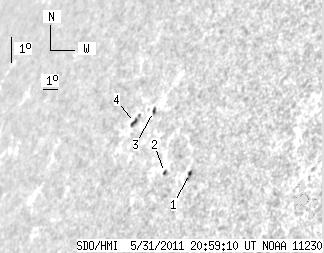

back to the solar disc SDO HMI 2011-05-31 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 1.99 | 1.26 | 1.99 | 19.18 | 7.32 | -58.06 | 67.31 | 0.8706 | -568.0 | -540.6 | |
| 0.63 | 1.54 | 0.66 | 1.61 | 19.24 | 5.72 | -59.65 | 67.61 | 0.8831 | -391.9 | -334.3 | |
| 1.17 | 2.35 | 1.33 | 2.66 | 21.25 | 3.65 | -61.72 | 65.84 | 0.9014 | 409.3 | 427.1 | |
| 2.62 | 5.33 | 3.08 | 6.25 | 20.90 | 2.56 | -62.81 | 66.44 | 0.9083 | 334.9 | 276.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
