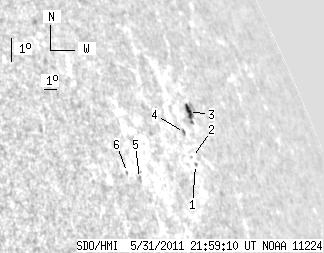

SDO HMI 2011-05-31 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.97 | 19.60 | 7.24 | 27.27 | 21.75 | 131.84 | 67.03 | 293.70 | 0.9348 | -180.9 | 32.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 2.23 | 20.57 | 131.84 | 67.02 | 292.44 | 0.9341 | -249.0 | -193.2 | |
| 0.00 | 0.63 | 0.00 | 0.87 | 20.80 | 131.79 | 66.98 | 292.69 | 0.9341 | -230.0 | -217.6 | |
| 4.97 | 11.92 | 7.24 | 17.49 | 22.32 | 132.92 | 68.10 | 294.12 | 0.9419 | -356.7 | 10.0 | |
| 0.00 | 2.08 | 0.00 | 2.87 | 21.62 | 131.88 | 67.06 | 293.54 | 0.9354 | -268.0 | -174.5 | |
| 0.00 | 2.17 | 0.00 | 2.49 | 20.05 | 127.14 | 62.33 | 292.73 | 0.9037 | 572.0 | 418.6 | |
| 0.00 | 1.17 | 0.00 | 1.32 | 20.24 | 126.44 | 61.62 | 293.07 | 0.8991 | 543.0 | 475.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
