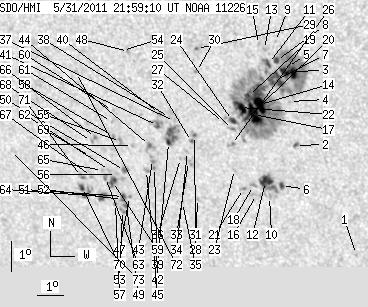

SDO HMI 2011-05-31 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.12 | 557.45 | 69.47 | 332.94 | -20.75 | 36.84 | -27.98 | 128.14 | 0.5588 | 233.0 | 204.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.48 | -25.24 | 40.72 | -24.10 | 138.38 | 0.5582 | 809.0 | 681.8 | |
| 1.54 | 2.53 | 0.90 | 1.49 | -21.64 | 39.21 | -25.60 | 131.70 | 0.5401 | 772.8 | 752.0 | |
| 12.46 | 354.83 | 7.21 | 207.80 | -19.28 | 39.42 | -25.40 | 128.25 | 0.5175 | 1307.5 | 512.5 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -20.21 | 39.26 | -25.56 | 129.57 | 0.5272 | 408.0 | 370.5 | |
| 0.63 | -3.00 | 0.37 | -3.00 | -19.09 | 39.38 | -25.44 | 127.90 | 0.5164 | 1059.7 | 999999 | |
| 2.98 | 3.43 | 1.78 | 2.05 | -22.95 | 38.44 | -26.38 | 132.82 | 0.5599 | 816.6 | 694.8 | |
| 13.73 | -3.00 | 7.98 | -3.00 | -19.50 | 38.92 | -25.90 | 128.10 | 0.5253 | 996.4 | 999999 | |
| 3.07 | -3.00 | 1.78 | -3.00 | -18.90 | 39.02 | -25.80 | 127.22 | 0.5191 | 893.1 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -18.29 | 39.08 | -25.73 | 126.29 | 0.5135 | 658.0 | 478.2 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -23.31 | 37.92 | -26.90 | 132.82 | 0.5686 | 518.0 | 333.1 | |
| 3.07 | -3.00 | 1.78 | -3.00 | -18.99 | 38.72 | -26.10 | 127.08 | 0.5235 | 818.0 | 999999 | |
| 9.93 | 21.95 | 5.95 | 13.15 | -22.81 | 37.88 | -26.94 | 132.07 | 0.5648 | 888.8 | 609.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -18.54 | 38.65 | -26.17 | 126.28 | 0.5207 | 789.0 | 707.8 | |
| 11.29 | -3.00 | 6.64 | -3.00 | -20.31 | 38.16 | -26.66 | 128.62 | 0.5407 | 1339.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -18.38 | 38.46 | -26.36 | 125.84 | 0.5217 | 614.0 | 487.2 | |
| 0.00 | 3.34 | 0.00 | 2.02 | -23.24 | 37.45 | -27.37 | 132.27 | 0.5730 | 52.0 | 215.9 | |
| 15.17 | -3.00 | 8.96 | -3.00 | -20.63 | 37.88 | -26.94 | 128.85 | 0.5465 | 1099.6 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.58 | -22.94 | 37.40 | -27.42 | 131.80 | 0.5710 | 622.0 | 510.7 | |
| 1.26 | -3.00 | 0.74 | -3.00 | -20.01 | 37.81 | -27.00 | 127.84 | 0.5423 | 844.6 | 999999 | |
| 0.90 | -3.00 | 0.54 | -3.00 | -20.76 | 37.60 | -27.22 | 128.77 | 0.5507 | 654.9 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.58 | -23.04 | 37.01 | -27.81 | 131.57 | 0.5760 | 490.0 | 360.5 | |
| 7.77 | -3.00 | 4.60 | -3.00 | -20.40 | 37.45 | -27.37 | 128.09 | 0.5496 | 827.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -22.41 | 36.81 | -28.01 | 130.49 | 0.5730 | 588.0 | 471.8 | |
| 3.25 | -3.00 | 1.94 | -3.00 | -20.82 | 37.07 | -27.74 | 128.38 | 0.5572 | 602.7 | 999999 | |
| 1.35 | 2.71 | 0.81 | 1.62 | -21.11 | 37.01 | -27.80 | 128.76 | 0.5602 | 388.1 | 326.0 | |
| 0.00 | 3.07 | 0.00 | 1.84 | -21.60 | 36.87 | -27.94 | 129.36 | 0.5657 | 569.0 | 476.8 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -20.88 | 36.73 | -28.09 | 128.16 | 0.5616 | 289.0 | 222.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -23.36 | 35.19 | -29.62 | 130.39 | 0.5980 | -745.0 | -627.8 | |
| 0.81 | 2.71 | 0.48 | 1.60 | -18.50 | 36.20 | -28.62 | 124.00 | 0.5500 | 648.8 | 209.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -19.23 | 36.06 | -28.76 | 125.05 | 0.5570 | 667.0 | 550.4 | |
| 1.35 | 2.80 | 0.82 | 1.70 | -21.30 | 35.56 | -29.26 | 127.76 | 0.5781 | -700.0 | -412.6 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -21.49 | 35.41 | -29.41 | 127.91 | 0.5813 | -824.0 | -773.2 | |
| 0.00 | 3.97 | 0.00 | 2.43 | -22.14 | 35.14 | -29.67 | 128.63 | 0.5892 | -450.0 | -482.5 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -21.82 | 35.18 | -29.64 | 128.19 | 0.5863 | -510.0 | -498.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -23.49 | 34.59 | -30.23 | 130.06 | 0.6055 | -753.0 | -634.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -22.04 | 34.86 | -29.95 | 128.25 | 0.5915 | -645.0 | -600.0 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -20.84 | 34.91 | -29.91 | 126.53 | 0.5821 | -674.0 | -587.4 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -20.71 | 34.75 | -30.06 | 126.21 | 0.5830 | -626.0 | -555.9 | |
| 1.35 | 21.67 | 0.83 | 13.24 | -21.52 | 34.53 | -30.29 | 127.22 | 0.5913 | 442.1 | -593.2 | |
| 0.00 | 1.99 | 0.00 | 1.21 | -20.58 | 34.40 | -30.41 | 125.73 | 0.5860 | -701.0 | -541.8 | |
| 1.63 | 10.02 | 1.00 | 6.14 | -20.96 | 34.24 | -30.57 | 126.18 | 0.5906 | -732.3 | -421.5 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -22.33 | 33.80 | -31.01 | 127.80 | 0.6054 | -824.0 | -695.1 | |
| 0.00 | 3.97 | 0.00 | 2.46 | -22.07 | 33.79 | -31.03 | 127.41 | 0.6036 | -679.0 | -733.9 | |
| 2.17 | 5.87 | 1.34 | 3.63 | -21.61 | 33.79 | -31.03 | 126.76 | 0.6004 | -852.2 | -801.0 | |
| 0.00 | 2.44 | 0.00 | 1.52 | -22.43 | 33.47 | -31.35 | 127.67 | 0.6097 | -740.0 | -605.7 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -21.61 | 33.14 | -31.68 | 126.25 | 0.6077 | -735.0 | -647.4 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -23.28 | 32.59 | -32.23 | 128.17 | 0.6254 | -706.0 | -649.4 | |
| 0.00 | 2.08 | 0.00 | 1.26 | -18.58 | 33.66 | -31.15 | 122.14 | 0.5813 | -827.0 | -671.4 | |
| 1.44 | 10.30 | 0.92 | 6.54 | -23.57 | 32.39 | -32.43 | 128.42 | 0.6296 | -771.2 | -724.8 | |
| 2.71 | 3.97 | 1.71 | 2.50 | -22.42 | 32.62 | -32.20 | 127.01 | 0.6190 | -838.0 | -715.4 | |
| 1.90 | -49.00 | 1.20 | -49.00 | -23.27 | 32.35 | -32.46 | 127.99 | 0.6279 | -952.6 | 999999 | |
| 1.54 | -49.00 | 0.98 | -49.00 | -23.37 | 32.29 | -32.53 | 128.07 | 0.6293 | -897.5 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.85 | -23.74 | 32.18 | -32.63 | 128.49 | 0.6329 | -563.0 | -489.8 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -18.54 | 33.45 | -31.37 | 121.93 | 0.5837 | -593.0 | -510.0 | |
| 0.00 | 3.25 | 0.00 | 2.03 | -21.48 | 32.71 | -32.11 | 125.73 | 0.6116 | -877.0 | -684.0 | |
| 0.00 | 2.17 | 0.00 | 1.37 | -22.55 | 32.27 | -32.54 | 126.93 | 0.6237 | -757.0 | -598.6 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -23.50 | 31.97 | -32.84 | 128.02 | 0.6335 | -635.0 | -527.8 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -21.31 | 32.48 | -32.34 | 125.33 | 0.6131 | -791.0 | -654.7 | |
| 4.15 | 9.93 | 2.64 | 6.30 | -22.78 | 32.06 | -32.76 | 127.08 | 0.6277 | -959.6 | -695.5 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -20.47 | 32.64 | -32.18 | 124.23 | 0.6056 | -659.0 | -521.8 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -20.82 | 32.52 | -32.30 | 124.65 | 0.6094 | -566.0 | -494.8 | |
| 0.00 | 1.99 | 0.00 | 1.26 | -22.42 | 32.04 | -32.78 | 126.57 | 0.6254 | -502.0 | -559.4 | |
| 0.00 | 2.71 | 0.00 | 1.72 | -22.65 | 31.82 | -33.00 | 126.72 | 0.6294 | -807.0 | -709.8 | |
| 5.87 | 6.68 | 3.76 | 4.28 | -23.27 | 31.52 | -33.29 | 127.37 | 0.6367 | -705.6 | -566.6 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -22.42 | 31.76 | -33.06 | 126.36 | 0.6284 | -780.0 | -648.5 | |
| 0.00 | 1.35 | 0.00 | 0.85 | -21.34 | 31.77 | -33.05 | 124.85 | 0.6212 | -747.0 | -662.9 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -22.61 | 31.27 | -33.54 | 126.28 | 0.6350 | -809.0 | -747.0 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -21.47 | 31.58 | -33.24 | 124.90 | 0.6242 | -783.0 | -639.3 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -21.96 | 31.41 | -33.40 | 125.47 | 0.6292 | -409.0 | -357.2 | |
| 2.80 | 15.35 | 1.81 | 9.91 | -22.97 | 30.81 | -34.00 | 126.45 | 0.6424 | -565.4 | -362.3 | |
| 0.00 | 2.89 | 0.00 | 1.86 | -22.61 | 30.88 | -33.94 | 126.00 | 0.6393 | -659.0 | -576.0 | |
| 0.00 | 2.08 | 0.00 | 1.30 | -19.24 | 31.54 | -33.27 | 121.64 | 0.6107 | -606.0 | -444.4 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -21.74 | 28.31 | -36.51 | 123.13 | 0.6622 | -556.0 | -431.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
