SDO HMI 2011-05-31 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.97 | 194.25 | 22.96 | 143.56 | -20.14 | 19.96 | -44.86 | 116.87 | 0.7446 | 415.6 | 264.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-31 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

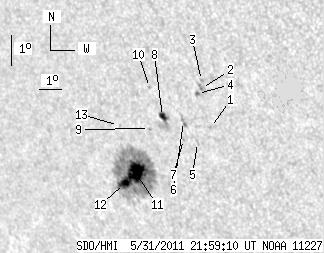

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.75 | -18.96 | 23.50 | -41.31 | 116.82 | 0.7019 | -708.0 | -647.3 | |
| 0.00 | 4.43 | 0.00 | 3.05 | -17.71 | 23.48 | -41.33 | 115.12 | 0.6971 | -857.0 | -531.7 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -17.46 | 23.55 | -41.26 | 114.80 | 0.6953 | -758.0 | -599.2 | |
| 0.36 | 1.99 | 0.25 | 1.37 | -17.87 | 23.27 | -41.55 | 115.24 | 0.7002 | -661.2 | -545.2 | |
| 0.00 | 1.99 | 0.00 | 1.40 | -19.43 | 22.79 | -42.03 | 117.14 | 0.7117 | -465.0 | -406.3 | |
| 0.00 | 3.43 | 0.00 | 2.42 | -18.76 | 22.40 | -42.42 | 116.07 | 0.7134 | -611.0 | -557.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -19.33 | 22.21 | -42.60 | 116.75 | 0.7176 | -582.0 | -514.7 | |
| 3.97 | 13.64 | 2.84 | 9.74 | -18.59 | 21.53 | -43.29 | 115.49 | 0.7223 | -698.3 | -184.8 | |
| 0.00 | 1.26 | 0.00 | 0.91 | -18.97 | 20.82 | -43.99 | 115.71 | 0.7313 | 671.0 | 563.8 | |
| 0.00 | 1.35 | 0.00 | 0.97 | -17.66 | 21.24 | -43.58 | 114.14 | 0.7221 | 446.0 | 342.7 | |
| 20.95 | 162.29 | 15.58 | 120.98 | -20.38 | 19.69 | -45.13 | 117.07 | 0.7484 | 1029.6 | 372.3 | |
| 5.69 | -11.00 | 4.29 | -11.00 | -20.73 | 19.04 | -45.78 | 117.27 | 0.7563 | 690.4 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -18.86 | 19.45 | -45.36 | 115.04 | 0.7455 | 369.0 | 435.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
