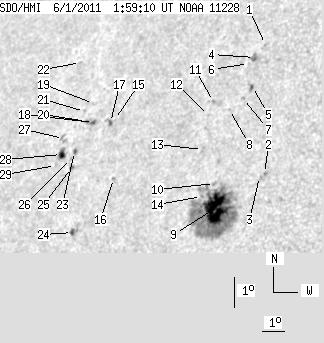

SDO HMI 2011-06-01 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.70 | 234.87 | 36.14 | 165.92 | 17.05 | 20.16 | -42.44 | 64.90 | 0.7141 | -405.3 | -285.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.15 | 21.70 | 21.94 | -40.67 | 57.99 | 0.7163 | -618.0 | -456.3 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 17.50 | 23.16 | -39.44 | 62.91 | 0.6829 | -705.0 | -652.9 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 17.41 | 22.98 | -39.63 | 63.13 | 0.6845 | -681.0 | -668.8 | |
| 0.00 | 5.69 | 0.00 | 4.03 | 21.27 | 21.61 | -41.00 | 58.71 | 0.7177 | -763.0 | -584.7 | |
| 1.54 | 3.34 | 1.08 | 2.35 | 20.32 | 21.84 | -40.77 | 59.82 | 0.7107 | -518.9 | -433.4 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 21.08 | 21.41 | -41.19 | 59.06 | 0.7188 | -540.0 | -454.7 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 19.94 | 21.57 | -41.03 | 60.46 | 0.7117 | -612.0 | -468.3 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 19.58 | 21.08 | -41.52 | 61.16 | 0.7153 | -587.0 | -478.0 | |
| 36.68 | 175.19 | 25.32 | 120.85 | 16.40 | 21.36 | -41.25 | 65.27 | 0.6987 | -967.6 | -381.7 | |
| 0.00 | 1.72 | 0.00 | 1.19 | 17.20 | 21.14 | -41.46 | 64.28 | 0.7043 | -531.0 | -390.1 | |
| 0.00 | 1.26 | 0.00 | 0.91 | 19.85 | 20.30 | -42.31 | 61.19 | 0.7248 | -564.0 | -485.4 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 19.40 | 20.23 | -42.38 | 61.81 | 0.7236 | -469.0 | -389.7 | |
| 0.00 | 1.90 | 0.00 | 1.35 | 18.30 | 20.31 | -42.30 | 63.20 | 0.7181 | -573.0 | -489.5 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 16.79 | 20.70 | -41.91 | 65.03 | 0.7076 | -166.0 | -116.2 | |
| 0.00 | 0.63 | 0.00 | 0.49 | 19.31 | 15.99 | -46.61 | 63.72 | 0.7672 | 592.0 | 501.4 | |
| 0.00 | 1.26 | 0.00 | 0.95 | 17.41 | 16.61 | -45.99 | 65.88 | 0.7543 | 688.0 | 544.6 | |
| 1.45 | 3.07 | 1.11 | 2.37 | 19.21 | 15.84 | -46.76 | 63.89 | 0.7684 | 627.3 | 604.8 | |
| 1.63 | 5.24 | 1.27 | 4.11 | 19.22 | 15.03 | -47.58 | 64.19 | 0.7765 | 774.8 | 625.7 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 19.84 | 14.79 | -47.82 | 63.52 | 0.7810 | 404.0 | 302.2 | |
| 0.36 | -18.00 | 0.28 | -18.00 | 19.26 | 14.68 | -47.93 | 64.27 | 0.7801 | 633.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 19.59 | 14.45 | -48.15 | 63.95 | 0.7834 | 342.0 | 270.6 | |
| 0.00 | 1.45 | 0.00 | 1.18 | 21.19 | 13.57 | -49.03 | 62.34 | 0.7971 | 590.0 | 451.3 | |
| 1.45 | 2.44 | 1.14 | 1.92 | 18.29 | 14.47 | -48.14 | 65.53 | 0.7791 | 713.2 | 590.0 | |
| 2.35 | 6.41 | 1.79 | 4.89 | 15.70 | 15.25 | -47.36 | 68.52 | 0.7633 | -635.7 | -511.0 | |
| 1.45 | 2.35 | 1.13 | 1.84 | 17.78 | 14.51 | -48.10 | 66.16 | 0.7771 | 647.6 | 541.9 | |
| 0.00 | 1.08 | 0.00 | 0.85 | 18.07 | 14.40 | -48.20 | 65.83 | 0.7791 | 480.0 | 437.2 | |
| 0.00 | 4.61 | 0.00 | 3.68 | 18.72 | 13.77 | -48.84 | 65.25 | 0.7873 | 375.0 | 394.7 | |
| 3.79 | 6.32 | 3.02 | 5.03 | 18.20 | 13.87 | -48.74 | 65.85 | 0.7848 | 706.6 | 504.4 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 17.85 | 13.71 | -48.90 | 66.34 | 0.7853 | 207.0 | 166.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
