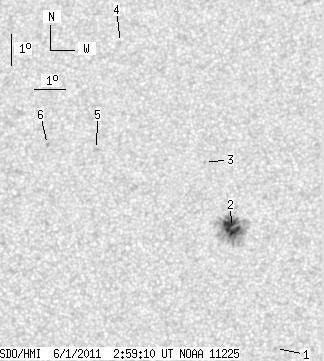

SDO HMI 2011-06-01 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.90 | 75.45 | 8.78 | 39.28 | 16.85 | 58.65 | -3.40 | 10.50 | 0.3086 | -1029.7 | -539.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.46 | 12.81 | 60.40 | -1.66 | 6.88 | 0.2365 | -805.0 | -600.4 | |
| 16.90 | 68.58 | 8.78 | 35.63 | 16.63 | 58.97 | -3.08 | 9.82 | 0.3037 | -1185.7 | -537.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 18.71 | 58.07 | -3.99 | 11.21 | 0.3404 | -743.0 | -605.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 22.64 | 55.18 | -6.87 | 15.58 | 0.4130 | -694.0 | -440.7 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 19.14 | 54.56 | -7.49 | 19.95 | 0.3626 | -799.0 | -599.7 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 19.30 | 52.96 | -9.10 | 23.57 | 0.3747 | -738.0 | -538.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
