SDO HMI 2011-06-01 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.35 | 11.20 | 4.18 | 11.03 | 20.25 | 4.81 | -57.25 | 65.94 | 0.8656 | -93.1 | 21.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

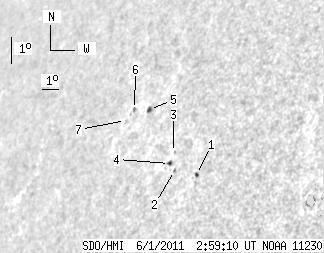

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.27 | 1.63 | 1.15 | 1.48 | 19.11 | 7.57 | -54.49 | 66.52 | 0.8407 | -529.3 | -498.0 | |
| 0.00 | 0.99 | 0.00 | 0.94 | 19.26 | 6.25 | -55.81 | 66.70 | 0.8523 | -706.0 | -575.9 | |
| 0.00 | 0.72 | 0.00 | 0.69 | 19.84 | 5.88 | -56.18 | 66.13 | 0.8566 | -400.0 | -346.5 | |
| 1.72 | 2.89 | 1.64 | 2.75 | 19.49 | 5.83 | -56.22 | 66.54 | 0.8562 | -351.4 | -302.9 | |
| 1.36 | 2.71 | 1.39 | 2.78 | 21.27 | 3.58 | -58.48 | 65.10 | 0.8777 | 589.6 | 462.5 | |
| 0.00 | 1.36 | 0.00 | 1.43 | 21.28 | 2.61 | -59.44 | 65.31 | 0.8850 | 458.0 | 416.5 | |
| 0.00 | 0.90 | 0.00 | 0.96 | 20.93 | 2.27 | -59.79 | 65.79 | 0.8869 | 252.0 | 191.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
