SDO HMI 2011-06-01 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.81 | 546.97 | 63.20 | 316.79 | -20.67 | 37.00 | -24.50 | 131.51 | 0.5193 | 279.6 | 249.0 | |
|
previous
or next observation for the same group /

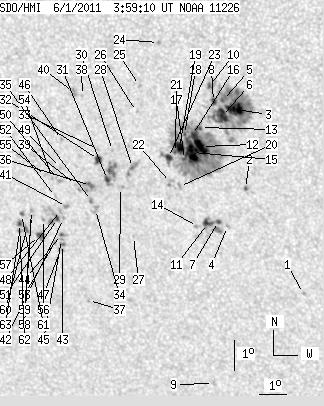

back to the solar disc SDO HMI 2011-06-01 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.42 | -25.28 | 40.84 | -20.66 | 142.56 | 0.5269 | 803.0 | 612.9 | |
| 1.08 | 1.63 | 0.62 | 0.93 | -21.81 | 39.37 | -22.14 | 135.90 | 0.5047 | 891.4 | 810.8 | |
| 14.64 | 152.72 | 8.25 | 86.23 | -19.25 | 39.41 | -22.10 | 131.94 | 0.4793 | 1317.0 | 550.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -23.05 | 38.51 | -22.99 | 136.69 | 0.5260 | 904.0 | 795.6 | |
| 1.54 | -3.00 | 0.87 | -3.00 | -18.96 | 39.00 | -22.51 | 130.97 | 0.4814 | 994.8 | 999999 | |
| 12.29 | -3.00 | 6.96 | -3.00 | -19.48 | 38.89 | -22.62 | 131.68 | 0.4874 | 1002.4 | 999999 | |
| 2.08 | 20.15 | 1.21 | 11.77 | -22.88 | 38.22 | -23.28 | 136.11 | 0.5274 | 949.1 | 587.0 | |
| 2.80 | -3.00 | 1.59 | -3.00 | -18.99 | 38.68 | -22.82 | 130.64 | 0.4853 | 876.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.22 | -28.32 | 36.87 | -24.63 | 141.70 | 0.5942 | 337.0 | 218.1 | |
| 1.63 | 5.24 | 0.92 | 2.96 | -18.48 | 38.61 | -22.89 | 129.71 | 0.4815 | 818.7 | 433.2 | |
| 5.42 | -7.00 | 3.17 | -7.00 | -22.95 | 37.81 | -23.69 | 135.73 | 0.5322 | 863.8 | 999999 | |
| 10.12 | 229.98 | 5.81 | 132.31 | -20.44 | 38.04 | -23.47 | 132.23 | 0.5060 | 1404.0 | 466.6 | |
| 1.17 | -12.00 | 0.67 | -12.00 | -19.83 | 38.10 | -23.41 | 131.33 | 0.4996 | 913.9 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.38 | -23.05 | 37.43 | -24.07 | 135.45 | 0.5371 | 512.0 | 421.7 | |
| 14.28 | -12.00 | 8.22 | -12.00 | -20.63 | 37.69 | -23.82 | 132.14 | 0.5117 | 1182.4 | 999999 | |
| 1.27 | -12.00 | 0.73 | -12.00 | -20.05 | 37.78 | -23.72 | 131.33 | 0.5053 | 1033.1 | 999999 | |
| 1.27 | -12.00 | 0.73 | -12.00 | -20.86 | 37.36 | -24.14 | 132.12 | 0.5174 | 604.6 | 999999 | |
| 1.17 | -12.00 | 0.67 | -12.00 | -20.05 | 37.50 | -24.01 | 131.01 | 0.5085 | 750.2 | 999999 | |
| 7.50 | -12.00 | 4.33 | -12.00 | -20.47 | 37.25 | -24.25 | 131.40 | 0.5151 | 912.4 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.32 | -21.73 | 37.03 | -24.48 | 133.09 | 0.5291 | 779.0 | 538.4 | |
| 1.36 | -12.00 | 0.78 | -12.00 | -20.63 | 37.08 | -24.42 | 131.46 | 0.5184 | 617.1 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.85 | -21.60 | 36.73 | -24.78 | 132.57 | 0.5311 | 405.0 | 517.7 | |
| 3.61 | -12.00 | 2.10 | -12.00 | -20.79 | 36.80 | -24.70 | 131.41 | 0.5230 | 654.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -17.11 | 37.03 | -24.48 | 125.60 | 0.4890 | 800.0 | 657.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -18.47 | 36.16 | -25.35 | 127.03 | 0.5107 | 665.0 | 542.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -19.30 | 35.91 | -25.59 | 128.14 | 0.5204 | 688.0 | 579.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -23.36 | 35.02 | -26.48 | 133.36 | 0.5652 | -814.0 | -645.8 | |
| 0.45 | 9.94 | 0.27 | 5.85 | -21.11 | 35.44 | -26.06 | 130.49 | 0.5410 | -721.8 | -436.8 | |
| 0.00 | 2.35 | 0.00 | 1.39 | -21.76 | 34.88 | -26.62 | 130.90 | 0.5528 | -779.0 | -694.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -20.55 | 34.82 | -26.68 | 129.04 | 0.5434 | -765.0 | -625.4 | |
| 2.53 | 19.16 | 1.50 | 11.36 | -21.49 | 34.46 | -27.05 | 130.10 | 0.5553 | 415.2 | -551.8 | |
| 4.79 | 5.78 | 2.84 | 3.43 | -20.84 | 34.26 | -27.25 | 128.93 | 0.5522 | -760.4 | -586.3 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -20.52 | 34.32 | -27.19 | 128.50 | 0.5489 | -609.0 | -598.9 | |
| 0.00 | 4.70 | 0.00 | 2.83 | -22.47 | 33.81 | -27.70 | 130.91 | 0.5705 | -639.0 | -594.4 | |
| 0.00 | 1.99 | 0.00 | 1.20 | -22.18 | 33.72 | -27.78 | 130.41 | 0.5690 | -911.0 | -807.8 | |
| 2.98 | 11.39 | 1.79 | 6.83 | -21.69 | 33.79 | -27.72 | 129.76 | 0.5643 | -873.7 | -703.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -25.48 | 32.82 | -28.68 | 134.15 | 0.6061 | -603.0 | -491.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -18.78 | 34.06 | -27.45 | 125.54 | 0.5383 | -636.0 | -574.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -21.65 | 33.24 | -28.26 | 129.20 | 0.5701 | -555.0 | -516.2 | |
| 0.00 | 2.98 | 0.00 | 1.75 | -18.68 | 33.75 | -27.75 | 125.11 | 0.5413 | -855.0 | -690.4 | |
| 0.00 | 2.26 | 0.00 | 1.37 | -22.37 | 32.75 | -28.76 | 129.80 | 0.5813 | -908.0 | -779.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -22.76 | 32.54 | -28.96 | 130.18 | 0.5866 | -771.0 | -575.7 | |
| 1.72 | 2.17 | 1.06 | 1.34 | -23.62 | 32.30 | -29.20 | 131.16 | 0.5960 | -768.1 | -719.6 | |
| 1.27 | 2.98 | 0.78 | 1.83 | -23.29 | 32.34 | -29.16 | 130.74 | 0.5929 | -919.2 | -654.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -23.45 | 32.30 | -29.20 | 130.94 | 0.5947 | -949.0 | -806.1 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -20.19 | 33.03 | -28.48 | 126.82 | 0.5612 | -710.0 | -552.1 | |
| 0.00 | 2.62 | 0.00 | 1.62 | -23.78 | 32.18 | -29.32 | 131.29 | 0.5986 | -556.0 | -494.9 | |
| 0.00 | 1.99 | 0.00 | 1.21 | -22.50 | 32.49 | -29.01 | 129.76 | 0.5851 | -755.0 | -677.7 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -21.10 | 32.80 | -28.70 | 127.99 | 0.5707 | -778.0 | -672.7 | |
| 0.00 | 3.07 | 0.00 | 1.86 | -21.49 | 32.64 | -28.86 | 128.43 | 0.5755 | -724.0 | -696.4 | |
| 1.99 | 11.21 | 1.22 | 6.86 | -22.76 | 32.32 | -29.19 | 129.98 | 0.5890 | -930.7 | -767.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -22.04 | 32.41 | -29.10 | 129.03 | 0.5824 | -683.0 | -561.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -23.55 | 32.01 | -29.49 | 130.82 | 0.5986 | -655.0 | -518.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -21.45 | 32.43 | -29.08 | 128.19 | 0.5777 | -658.0 | -572.4 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -21.35 | 32.19 | -29.32 | 127.84 | 0.5796 | -472.0 | -439.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -22.79 | 31.78 | -29.73 | 129.56 | 0.5951 | -756.0 | -673.5 | |
| 3.70 | 5.51 | 2.29 | 3.41 | -23.31 | 31.50 | -30.01 | 130.05 | 0.6022 | -744.3 | -570.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -22.49 | 31.39 | -30.11 | 128.81 | 0.5970 | -642.0 | -517.1 | |
| 0.00 | 1.81 | 0.00 | 1.12 | -22.66 | 31.35 | -30.15 | 129.01 | 0.5987 | -760.0 | -595.0 | |
| 2.35 | 4.88 | 1.46 | 3.03 | -23.11 | 31.05 | -30.46 | 129.40 | 0.6055 | -651.9 | -450.6 | |
| 1.36 | 2.71 | 0.84 | 1.68 | -22.62 | 30.98 | -30.53 | 128.65 | 0.6025 | -728.5 | -645.0 | |
| 2.08 | 3.52 | 1.29 | 2.19 | -22.92 | 30.83 | -30.68 | 128.94 | 0.6064 | -723.3 | -537.8 | |
| 0.36 | -60.00 | 0.23 | -60.00 | -23.18 | 30.76 | -30.74 | 129.25 | 0.6091 | -499.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
