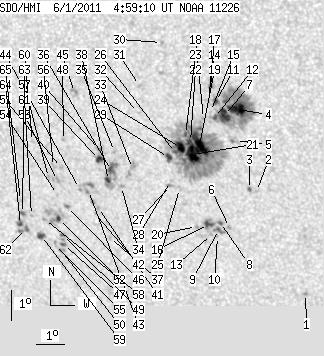

SDO HMI 2011-06-01 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.48 | 539.36 | 63.32 | 311.94 | -20.75 | 36.73 | -24.22 | 131.98 | 0.5171 | 337.6 | 202.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.26 | -25.28 | 40.86 | -20.09 | 143.30 | 0.5219 | 761.0 | 614.8 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.90 | 39.68 | -21.27 | 137.13 | 0.4968 | 704.0 | 585.7 | |
| 1.54 | 2.08 | 0.88 | 1.19 | -21.84 | 39.45 | -21.51 | 136.73 | 0.4985 | 769.3 | 662.8 | |
| 14.28 | 120.46 | 8.02 | 67.71 | -19.25 | 39.38 | -21.58 | 132.58 | 0.4735 | 1318.0 | 604.0 | |
| 0.00 | 5.06 | 0.00 | 2.86 | -20.25 | 39.20 | -21.76 | 133.98 | 0.4852 | 417.0 | 481.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.08 | 38.53 | -22.43 | 137.41 | 0.5206 | 816.0 | 667.5 | |
| 11.57 | -4.00 | 6.53 | -4.00 | -19.44 | 38.93 | -22.02 | 132.35 | 0.4804 | 1017.0 | 999999 | |
| 0.99 | 16.36 | 0.58 | 9.51 | -22.91 | 38.24 | -22.72 | 136.82 | 0.5219 | 986.1 | 688.0 | |
| 1.54 | -8.00 | 0.89 | -8.00 | -23.14 | 38.12 | -22.83 | 137.02 | 0.5254 | 752.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -23.37 | 38.05 | -22.91 | 137.25 | 0.5285 | 399.0 | 334.1 | |
| 2.62 | -4.00 | 1.48 | -4.00 | -18.99 | 38.69 | -22.27 | 131.30 | 0.4790 | 890.1 | 999999 | |
| 2.17 | -4.00 | 1.23 | -4.00 | -19.50 | 38.58 | -22.38 | 132.02 | 0.4850 | 854.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -23.31 | 37.84 | -23.11 | 136.92 | 0.5299 | 441.0 | 406.3 | |
| 1.63 | 3.61 | 0.92 | 2.03 | -18.51 | 38.58 | -22.38 | 130.37 | 0.4757 | 806.7 | 588.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -19.31 | 38.47 | -22.49 | 131.57 | 0.4845 | 214.0 | 196.5 | |
| 3.07 | -8.00 | 1.79 | -8.00 | -22.98 | 37.79 | -23.16 | 136.39 | 0.5271 | 882.2 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.74 | -18.99 | 38.44 | -22.51 | 131.01 | 0.4818 | 43.0 | 149.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -19.53 | 38.19 | -22.77 | 131.61 | 0.4897 | 728.0 | 608.8 | |
| 16.00 | 217.34 | 9.14 | 124.54 | -20.40 | 37.91 | -23.04 | 132.67 | 0.5010 | 1337.0 | 453.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -23.04 | 37.35 | -23.61 | 135.98 | 0.5323 | 656.0 | 508.4 | |
| 12.74 | -19.00 | 7.31 | -19.00 | -20.69 | 37.62 | -23.34 | 132.79 | 0.5070 | 1138.7 | 999999 | |
| 1.54 | -19.00 | 0.88 | -19.00 | -20.27 | 37.62 | -23.34 | 132.13 | 0.5031 | 940.7 | 999999 | |
| 1.45 | -19.00 | 0.83 | -19.00 | -20.05 | 37.48 | -23.48 | 131.61 | 0.5026 | 741.3 | 999999 | |
| 7.14 | -19.00 | 4.10 | -19.00 | -20.46 | 37.23 | -23.73 | 131.99 | 0.5092 | 915.1 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.21 | -21.80 | 36.97 | -23.99 | 133.73 | 0.5244 | 630.0 | 575.8 | |
| 0.81 | -19.00 | 0.47 | -19.00 | -20.63 | 37.03 | -23.93 | 132.01 | 0.5129 | 608.7 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.84 | -21.70 | 36.66 | -24.29 | 133.24 | 0.5268 | 751.0 | 568.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.57 | 36.68 | -24.27 | 133.07 | 0.5254 | 623.0 | 426.1 | |
| 3.71 | 6.42 | 2.14 | 3.71 | -20.79 | 36.75 | -24.21 | 131.96 | 0.5175 | 628.7 | 426.3 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -17.10 | 37.07 | -23.89 | 126.23 | 0.4817 | 766.0 | 617.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -18.47 | 36.10 | -24.86 | 127.54 | 0.5048 | 754.0 | 547.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -19.33 | 35.93 | -25.03 | 128.78 | 0.5141 | 547.0 | 476.3 | |
| 0.00 | 8.86 | 0.00 | 5.19 | -21.14 | 35.39 | -25.56 | 131.05 | 0.5357 | -570.0 | -514.3 | |
| 0.00 | 2.26 | 0.00 | 1.33 | -21.72 | 34.88 | -26.07 | 131.40 | 0.5465 | -887.0 | -746.8 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -20.58 | 34.84 | -26.11 | 129.65 | 0.5372 | -690.0 | -506.3 | |
| 4.25 | 25.48 | 2.51 | 15.05 | -21.20 | 34.62 | -26.34 | 130.36 | 0.5449 | -827.9 | -368.4 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -23.39 | 34.09 | -26.86 | 133.03 | 0.5695 | -727.0 | -579.1 | |
| 2.89 | -36.00 | 1.71 | -36.00 | -21.52 | 34.45 | -26.51 | 130.68 | 0.5496 | 456.5 | 999999 | |
| 3.71 | 6.96 | 2.19 | 4.11 | -20.84 | 34.25 | -26.70 | 129.46 | 0.5461 | -832.7 | -543.1 | |
| 0.00 | 2.35 | 0.00 | 1.38 | -20.52 | 34.31 | -26.64 | 129.02 | 0.5427 | -697.0 | -559.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -22.40 | 33.90 | -27.06 | 131.43 | 0.5631 | -900.0 | -740.8 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -22.60 | 33.75 | -27.21 | 131.57 | 0.5664 | -658.0 | -521.1 | |
| 0.00 | 10.66 | 0.00 | 6.37 | -21.85 | 33.65 | -27.31 | 130.38 | 0.5612 | -833.0 | -769.7 | |
| 0.00 | 2.26 | 0.00 | 1.35 | -21.78 | 33.33 | -27.63 | 129.98 | 0.5641 | -772.0 | -684.8 | |
| 0.00 | 4.52 | 0.00 | 2.65 | -18.68 | 33.74 | -27.22 | 125.60 | 0.5349 | -719.0 | -684.8 | |
| 0.54 | 1.90 | 0.33 | 1.15 | -22.36 | 32.76 | -28.20 | 130.31 | 0.5752 | -832.0 | -825.3 | |
| 1.72 | 4.07 | 1.05 | 2.49 | -23.61 | 32.32 | -28.64 | 131.67 | 0.5901 | -732.2 | -693.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -20.22 | 33.05 | -27.90 | 127.39 | 0.5548 | -674.0 | -484.2 | |
| 1.36 | 2.08 | 0.83 | 1.27 | -23.32 | 32.35 | -28.61 | 131.29 | 0.5873 | -920.0 | -817.0 | |
| 0.00 | 2.89 | 0.00 | 1.78 | -23.81 | 32.19 | -28.76 | 131.83 | 0.5930 | -590.0 | -462.6 | |
| 0.00 | 1.99 | 0.00 | 1.19 | -21.09 | 32.81 | -28.15 | 128.49 | 0.5645 | -823.0 | -526.8 | |
| 2.17 | 19.97 | 1.32 | 12.16 | -22.76 | 32.33 | -28.63 | 130.48 | 0.5830 | -930.0 | -695.4 | |
| 0.00 | 5.78 | 0.00 | 3.48 | -21.51 | 32.57 | -28.39 | 128.90 | 0.5705 | -773.0 | -675.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -21.97 | 32.47 | -28.49 | 129.48 | 0.5752 | -678.0 | -614.1 | |
| 0.00 | 2.26 | 0.00 | 1.39 | -23.61 | 32.01 | -28.94 | 131.40 | 0.5933 | -470.0 | -452.1 | |
| 0.00 | 3.80 | 0.00 | 2.28 | -21.06 | 32.52 | -28.44 | 128.18 | 0.5675 | -527.0 | -463.2 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -21.41 | 32.25 | -28.70 | 128.47 | 0.5732 | -639.0 | -520.0 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -22.79 | 31.79 | -29.16 | 130.05 | 0.5890 | -856.0 | -664.4 | |
| 4.25 | 5.51 | 2.62 | 3.39 | -23.31 | 31.55 | -29.40 | 130.58 | 0.5958 | -742.0 | -568.9 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -20.25 | 31.91 | -29.05 | 126.42 | 0.5683 | -389.0 | -413.8 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -22.65 | 31.33 | -29.62 | 129.46 | 0.5930 | -644.0 | -567.5 | |
| 2.17 | 11.39 | 1.34 | 7.04 | -23.08 | 31.04 | -29.92 | 129.81 | 0.5995 | -661.1 | -476.7 | |
| 2.35 | 2.53 | 1.45 | 1.56 | -22.59 | 31.01 | -29.95 | 129.09 | 0.5960 | -691.6 | -527.0 | |
| 1.27 | -62.00 | 0.78 | -62.00 | -22.95 | 30.84 | -30.11 | 129.46 | 0.6006 | -698.4 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.28 | -22.16 | 31.03 | -29.92 | 128.50 | 0.5925 | -290.0 | -248.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
