SDO HMI 2011-06-01 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.69 | 13.30 | 7.24 | 12.46 | 20.17 | 4.95 | -55.46 | 65.58 | 0.8507 | -65.0 | -163.0 | |
|
previous
or next observation for the same group /

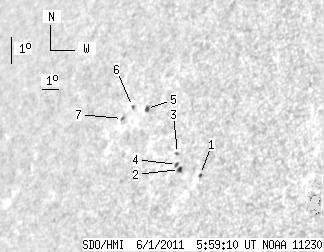

back to the solar disc SDO HMI 2011-06-01 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 1.72 | 0.79 | 1.50 | 19.08 | 7.67 | -52.73 | 66.08 | 0.8249 | -501.0 | -522.4 | |
| 1.72 | 2.71 | 1.54 | 2.43 | 19.25 | 6.45 | -53.96 | 66.23 | 0.8363 | -603.7 | -506.7 | |
| 0.00 | 1.36 | 0.00 | 1.23 | 19.77 | 6.08 | -54.33 | 65.72 | 0.8407 | -581.0 | -413.3 | |
| 1.45 | 1.99 | 1.31 | 1.80 | 19.41 | 6.21 | -54.20 | 66.10 | 0.8388 | -410.1 | -378.3 | |
| 1.99 | 2.62 | 1.95 | 2.57 | 21.27 | 3.46 | -56.95 | 64.73 | 0.8657 | 478.9 | 299.1 | |
| 0.36 | 1.45 | 0.36 | 1.46 | 21.35 | 2.56 | -57.85 | 64.87 | 0.8729 | 482.0 | 408.3 | |
| 1.27 | 1.45 | 1.29 | 1.47 | 20.96 | 2.18 | -58.23 | 65.40 | 0.8751 | 196.8 | 190.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
