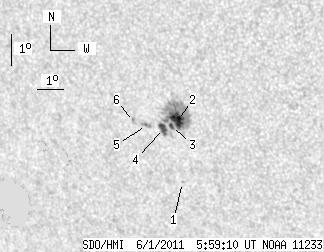

SDO HMI 2011-06-01 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.97 | 76.28 | 13.04 | 47.34 | -17.89 | 26.91 | -33.50 | 119.55 | 0.6060 | 840.4 | 556.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.80 | 26.87 | -33.54 | 122.35 | 0.6177 | 653.0 | 517.1 | |
| 12.02 | 61.73 | 7.45 | 38.21 | -17.81 | 27.12 | -33.29 | 119.56 | 0.6029 | 1035.7 | 567.5 | |
| 2.44 | -2.00 | 1.52 | -2.00 | -18.00 | 26.85 | -33.56 | 119.68 | 0.6073 | 747.4 | 999999 | |
| 6.51 | 7.41 | 4.07 | 4.63 | -18.06 | 26.53 | -33.88 | 119.57 | 0.6115 | 666.7 | 506.1 | |
| 0.00 | 4.16 | 0.00 | 2.62 | -17.96 | 25.89 | -34.52 | 119.02 | 0.6187 | 685.0 | 509.6 | |
| 0.00 | 2.17 | 0.00 | 1.37 | -17.83 | 25.41 | -34.99 | 118.54 | 0.6237 | 577.0 | 436.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
