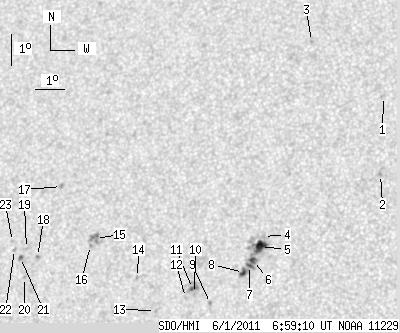

SDO HMI 2011-06-01 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.78 | 85.87 | 11.87 | 47.27 | 17.23 | 41.23 | -18.63 | 44.57 | 0.4360 | -226.2 | -58.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.25 | 22.12 | 46.94 | -12.92 | 28.15 | 0.4409 | 257.0 | 318.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 19.57 | 47.06 | -12.80 | 31.12 | 0.4056 | 1029.0 | 808.6 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 23.96 | 44.28 | -15.58 | 30.51 | 0.4853 | 830.0 | 598.7 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 17.59 | 43.36 | -16.50 | 40.88 | 0.4155 | -14.0 | -81.6 | |
| 9.31 | 42.21 | 5.06 | 22.93 | 17.27 | 43.29 | -16.57 | 41.53 | 0.4126 | -1120.4 | -504.5 | |
| 2.98 | -5.00 | 1.62 | -5.00 | 16.82 | 43.10 | -16.77 | 42.61 | 0.4095 | -1103.9 | 999999 | |
| 2.35 | -5.00 | 1.27 | -5.00 | 16.66 | 42.98 | -16.88 | 43.08 | 0.4090 | -1035.7 | 999999 | |
| 3.34 | -5.00 | 1.81 | -5.00 | 16.44 | 42.80 | -17.06 | 43.77 | 0.4085 | -898.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 15.46 | 41.79 | -18.07 | 47.15 | 0.4095 | -940.0 | -777.7 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 15.78 | 41.23 | -18.63 | 47.40 | 0.4193 | -974.0 | -722.0 | |
| 2.35 | 7.50 | 1.28 | 4.10 | 15.94 | 41.15 | -18.71 | 47.24 | 0.4219 | -1048.4 | -742.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 15.65 | 40.94 | -18.92 | 48.06 | 0.4215 | -869.0 | -692.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 15.25 | 39.98 | -19.88 | 50.18 | 0.4290 | -780.0 | -590.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 16.30 | 39.26 | -20.60 | 49.23 | 0.4477 | -649.0 | -531.2 | |
| 0.00 | 9.94 | 0.00 | 5.60 | 17.55 | 37.68 | -22.18 | 49.10 | 0.4782 | 887.0 | 677.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 17.32 | 37.53 | -22.33 | 49.65 | 0.4778 | 903.0 | 822.6 | |
| 0.00 | 2.44 | 0.00 | 1.40 | 19.23 | 36.26 | -23.60 | 48.08 | 0.5101 | 896.0 | 701.1 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 16.98 | 35.74 | -24.12 | 52.27 | 0.4961 | 880.0 | 756.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 17.24 | 35.32 | -24.54 | 52.30 | 0.5033 | 865.0 | 669.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 16.32 | 35.38 | -24.48 | 53.79 | 0.4949 | 749.0 | 568.0 | |
| 1.45 | 2.17 | 0.83 | 1.24 | 16.95 | 35.15 | -24.71 | 52.95 | 0.5029 | 814.5 | 649.2 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 17.21 | 34.91 | -24.96 | 52.79 | 0.5081 | 784.0 | 671.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 17.47 | 34.80 | -25.06 | 52.48 | 0.5115 | 682.0 | 484.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
