SDO HMI 2011-06-01 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.51 | 13.46 | 5.06 | 12.47 | 20.16 | 4.97 | -54.89 | 65.43 | 0.8459 | -4.4 | -75.8 | |
|
previous
or next observation for the same group /

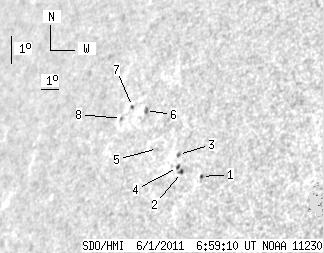

back to the solar disc SDO HMI 2011-06-01 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 0.99 | 0.86 | 0.86 | 19.04 | 7.72 | -52.14 | 65.95 | 0.8194 | -472.7 | -525.0 | |
| 0.99 | 2.53 | 0.88 | 2.24 | 19.18 | 6.59 | -53.27 | 66.12 | 0.8300 | -627.4 | -592.6 | |
| 0.00 | 1.81 | 0.00 | 1.62 | 19.77 | 6.14 | -53.72 | 65.56 | 0.8354 | -583.0 | -391.6 | |
| 1.27 | 1.90 | 1.13 | 1.69 | 19.35 | 6.29 | -53.57 | 66.01 | 0.8331 | -495.5 | -441.3 | |
| 0.00 | 1.08 | 0.00 | 1.00 | 19.98 | 4.86 | -55.00 | 65.68 | 0.8469 | 224.0 | 161.0 | |
| 2.26 | 2.89 | 2.19 | 2.80 | 21.23 | 3.47 | -56.39 | 64.62 | 0.8612 | 522.5 | 462.4 | |
| 0.00 | 1.27 | 0.00 | 1.26 | 21.37 | 2.60 | -57.26 | 64.69 | 0.8684 | 490.0 | 399.5 | |
| 0.00 | 0.99 | 0.00 | 1.00 | 20.99 | 2.17 | -57.69 | 65.24 | 0.8710 | 203.0 | 180.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
