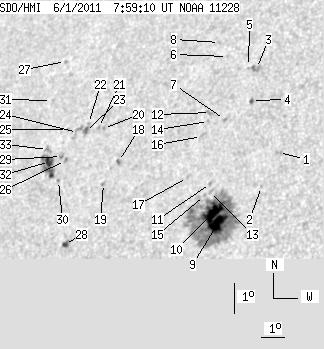

SDO HMI 2011-06-01 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.28 | 272.39 | 31.18 | 184.10 | 17.15 | 19.86 | -39.45 | 63.41 | 0.6803 | -377.6 | -187.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.53 | 0.00 | 1.64 | 18.48 | 23.41 | -35.90 | 59.63 | 0.6468 | -614.0 | -532.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 17.39 | 23.00 | -36.31 | 61.42 | 0.6458 | -673.0 | -553.2 | |
| 0.00 | 5.24 | 0.00 | 3.53 | 21.22 | 21.78 | -37.53 | 56.88 | 0.6804 | -790.0 | -649.4 | |
| 1.45 | 1.99 | 0.97 | 1.33 | 20.17 | 21.88 | -37.43 | 58.22 | 0.6735 | -588.8 | -437.2 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 21.29 | 21.43 | -37.88 | 57.00 | 0.6845 | -434.0 | -399.9 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 21.62 | 20.45 | -38.87 | 57.13 | 0.6968 | -520.0 | -412.4 | |
| 0.00 | 1.17 | 0.00 | 0.79 | 19.56 | 20.94 | -38.37 | 59.58 | 0.6805 | -650.0 | -524.4 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 22.09 | 19.96 | -39.36 | 56.81 | 0.7044 | -700.0 | -587.2 | |
| 17.26 | 192.59 | 11.32 | 126.79 | 16.22 | 21.51 | -37.80 | 63.91 | 0.6576 | -1190.1 | -352.4 | |
| 18.62 | -9.00 | 12.28 | -9.00 | 16.57 | 21.23 | -38.09 | 63.56 | 0.6626 | -902.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 17.50 | 20.92 | -38.39 | 62.42 | 0.6705 | -391.0 | -326.7 | |
| 0.00 | 2.98 | 0.00 | 2.03 | 19.80 | 20.30 | -39.02 | 59.63 | 0.6889 | -516.0 | -364.4 | |
| 0.00 | 2.08 | 0.00 | 1.38 | 17.25 | 20.98 | -38.33 | 62.74 | 0.6686 | -516.0 | -408.2 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 19.50 | 20.30 | -39.01 | 60.02 | 0.6874 | -502.0 | -449.4 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 17.12 | 20.77 | -38.54 | 63.03 | 0.6704 | -411.0 | -313.4 | |
| 0.00 | 2.53 | 0.00 | 1.72 | 19.02 | 20.15 | -39.17 | 60.75 | 0.6867 | -487.0 | -390.4 | |
| 0.00 | 0.72 | 0.00 | 0.49 | 17.70 | 19.92 | -39.39 | 62.65 | 0.6829 | -383.0 | -328.5 | |
| 0.00 | 1.81 | 0.00 | 1.29 | 18.24 | 16.84 | -42.47 | 63.40 | 0.7195 | 832.0 | 669.7 | |
| 0.00 | 1.54 | 0.00 | 1.10 | 17.54 | 16.40 | -42.92 | 64.51 | 0.7216 | 653.0 | 553.5 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 19.32 | 15.84 | -43.47 | 62.45 | 0.7346 | 821.0 | 630.4 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 19.35 | 15.60 | -43.71 | 62.51 | 0.7372 | 680.0 | 594.8 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 19.49 | 15.11 | -44.20 | 62.55 | 0.7430 | 603.0 | 482.5 | |
| 1.54 | 3.52 | 1.13 | 2.60 | 19.23 | 15.06 | -44.25 | 62.90 | 0.7424 | 708.2 | 691.6 | |
| 0.00 | 6.33 | 0.00 | 4.69 | 19.20 | 14.71 | -44.60 | 63.09 | 0.7460 | 604.0 | 573.5 | |
| 0.00 | 1.17 | 0.00 | 0.88 | 19.30 | 14.22 | -45.10 | 63.16 | 0.7515 | 358.0 | 265.7 | |
| 0.00 | 1.90 | 0.00 | 1.40 | 18.30 | 14.47 | -44.84 | 64.33 | 0.7451 | 825.0 | 704.8 | |
| 0.00 | 1.36 | 0.00 | 1.05 | 21.52 | 13.27 | -46.04 | 60.79 | 0.7694 | 345.0 | 333.9 | |
| 2.44 | 3.43 | 1.75 | 2.47 | 15.61 | 15.23 | -44.08 | 67.53 | 0.7273 | -638.8 | -620.5 | |
| 0.00 | 2.26 | 0.00 | 1.68 | 18.43 | 14.24 | -45.07 | 64.26 | 0.7480 | 831.0 | 646.5 | |
| 0.00 | 1.36 | 0.00 | 1.00 | 17.66 | 14.36 | -44.95 | 65.20 | 0.7439 | 615.0 | 511.9 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 20.25 | 13.12 | -46.19 | 62.42 | 0.7661 | 365.0 | 355.2 | |
| 4.97 | 20.70 | 3.73 | 15.51 | 18.27 | 13.75 | -45.56 | 64.65 | 0.7526 | 796.2 | 423.2 | |
| 0.00 | 3.25 | 0.00 | 2.45 | 18.66 | 13.52 | -45.79 | 64.25 | 0.7563 | 566.0 | 465.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
