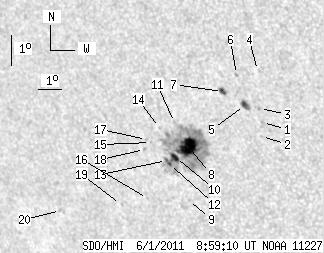

SDO HMI 2011-06-01 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.08 | 181.97 | 22.30 | 123.40 | -20.36 | 19.59 | -39.18 | 119.83 | 0.6849 | 370.8 | 336.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-01 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.58 | -19.61 | 22.90 | -35.86 | 120.63 | 0.6436 | -702.0 | -505.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -20.06 | 22.75 | -36.02 | 121.17 | 0.6479 | -478.0 | -348.7 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -19.16 | 22.90 | -35.87 | 119.98 | 0.6412 | -529.0 | -533.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -17.94 | 23.12 | -35.65 | 118.34 | 0.6323 | -525.0 | -602.0 | |
| 3.98 | 6.42 | 2.58 | 4.16 | -19.06 | 22.33 | -36.44 | 119.51 | 0.6473 | -722.9 | -633.0 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -18.07 | 22.25 | -36.51 | 118.04 | 0.6431 | -555.0 | -471.3 | |
| 2.08 | 3.52 | 1.36 | 2.30 | -18.60 | 21.56 | -37.21 | 118.43 | 0.6540 | -679.8 | -527.1 | |
| 21.51 | 159.32 | 14.57 | 108.23 | -20.36 | 19.67 | -39.10 | 119.87 | 0.6841 | 1050.2 | 407.5 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -22.12 | 19.10 | -39.66 | 121.91 | 0.6989 | -655.0 | -502.8 | |
| 4.16 | -8.00 | 2.85 | -8.00 | -20.72 | 19.01 | -39.76 | 120.00 | 0.6930 | 731.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -19.59 | 19.31 | -39.45 | 118.63 | 0.6844 | -7.0 | 46.3 | |
| 1.08 | -8.00 | 0.75 | -8.00 | -20.94 | 18.68 | -40.08 | 120.14 | 0.6977 | 668.8 | 999999 | |
| 0.27 | -8.00 | 0.19 | -8.00 | -20.81 | 18.60 | -40.17 | 119.92 | 0.6980 | 488.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -19.74 | 18.63 | -40.13 | 118.51 | 0.6926 | 455.0 | 397.2 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -20.22 | 18.10 | -40.67 | 118.89 | 0.7007 | 469.0 | 339.3 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -22.04 | 17.36 | -41.41 | 120.92 | 0.7170 | 654.0 | 542.6 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -20.13 | 17.96 | -40.81 | 118.69 | 0.7018 | -249.0 | -136.8 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -20.45 | 17.77 | -41.00 | 119.03 | 0.7053 | 442.0 | 313.6 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -22.23 | 16.09 | -42.68 | 120.55 | 0.7310 | 490.0 | 476.0 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -22.41 | 13.26 | -45.50 | 119.54 | 0.7602 | -657.0 | -601.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
